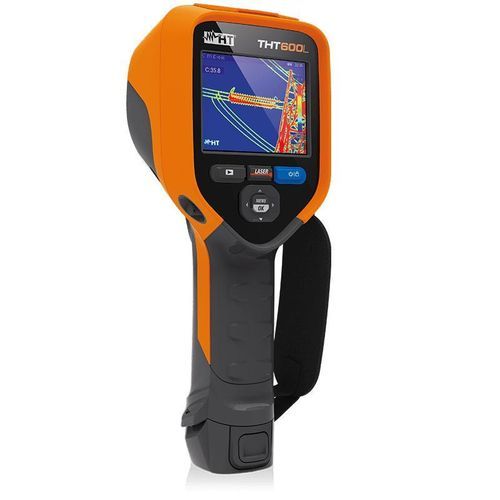

Thermal camera THT600L

digitalindustrialinfrared

Product Overview
The THT600L is a professional thermal camera equipped with a high-resolution 384x288px IR sensor and a field of view of 9.8° x 7.3°, ideal for inspecting small elements from a distance. It is suitable for industrial and construction use, particularly in electricity distribution. Features include AutoFusion and Picture in Picture functions, an ergonomic strap, and an integrated laser distance meter. The camera has a modern icon-based interface and a high-brightness capacitive touchscreen. Wi-Fi connectivity allows thermogram downloads to mobile devices, and the HT Pro Camera app facilitates PDF report creation and sharing.

Functions and Specifications

• IR Resolution: 384x288 px
• Temperature Range: -20° to 650°C
• Image Frequency: 50Hz
• Thermal Sensitivity / NETD: <0.05°C @ 30°C / 50mK
• Field of View (FOV): 9.8° x 7.3°
• Focal Length: f 1.0
• Lens: 38mm
• IFOV: 0.77mrad
• Focus Mode: Manual
• Picture in Picture Function: Yes
• AutoFusion Image Enhancement: Yes
• Measurement Uncertainty: ±2°C (±3.6°F) or ±2% of reading
• Digital Zoom: 1x to 32x
• Measurement Tools: Center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
• Area Measurement Information: Max, Min, AVG
• IR Video Recording: Yes
• Measurement Corrections: Emissivity, reflected temperature, ambient temperature, atmospheric humidity, distance compensation
• Color Palettes: Iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
• Span Modes: Automatic / Manual / Histogram
• Laser Pointer: Yes
• Laser Distance Meter: Yes
• Built-in LED Light: Yes
• Internal Memory: 3.4 GB
• On-Camera Report Building: Text notes, voice notes
• Communication Modes: Micro USB, Wi-Fi, micro SD, micro HDMI
• Display: Touchscreen
• Battery Operation Time: 4 hours
• Size (LxWxH): 240 x 101 x 110mm

Guidelines

• CE Mark
• EMC 2014/30/EU
• EMC: IEC/EN61326
• IEC/EN61010-1
