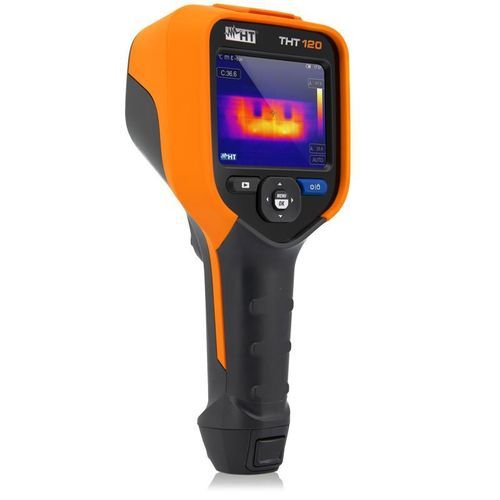

Digital camera THT120

plumbingmechanicalthermal imaging

Product Overview
THT120 is the new professional thermal camera equipped with a high resolution 120 x 120pxl IR sensor which makes it suitable for use in electrical, mechanical, plumbing, ventilation and refrigeration systems. It is equipped with a measuring range of -20° C ÷ 650.0° C and a field of view of 15.6°x 15.6°, producing high quality thermal images and videos, as well as allowing AutoFusion and Picture in Picture functions. The thermal imaging camera is equipped with a modern internal icon structure and a high brightness capacitive touch-screen display. It is also equipped with Wi-Fi connection, as well as being compatible with the new and convenient HT Pro Camera application.

Functions and Specifications

• IR Resolution: 120 x 120 pxl
• Temperature range: -20° ÷ 650°C
• Image frequency: 50Hz
• Thermal sensitivity / NETD: <0.05°C @ 30°C / 50mK
• Field of view (FOV): 15.6° x 15.6°
• Focal length: f 1.0
• Lens: 7.5mm
• IFOV: 4.53mrad
• Focus mode: focus free
• Built-in camera: 2 MP, focus free
• Picture in Picture function: ●
• AutoFusion image enhancement: ●
• Uncertainty about the measure: ±2°C (±3.6°F) or ±2% of reading
• Digital zoom: 1x ÷ 32x
• Measurement tools (in live mode): none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
• Area measurement information: max, min, AVG
• IR Video recording: ●
• Measurement corrections: emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
• Color Palettes: iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
• Span modes: Automatic / Manual / Histogram
• Internal memory: 3.4 GB
• On-camera report building: text annotation
• Communication modes: USB type C, Wi-fi, SD card
• Display: touch screen
• Battery operation time: 4 hours
• Size (LxWxH) (mm): 240 x 101 x 110mm

Guidelines

• CE MARK
• EMC 2014/30/EU
• EMC: IEC/EN61326
• IEC/EN61010-1

Standard Accessories

• Calibration report
• User Manual
• USB cable for PC connection
• THTBATM: Li-on battery for medium format infrared cameras
• SD card 32GB

Optional Accessories

• THTBATKITM: Additional battery THTBATM + charging base THTCBM (for THT100, THT200, THT300 and THT400 cameras)
• THTCASEM: Rigid carrying case (for THT100, THT200, THT300 and THT400 thermal imaging cameras)

Technical Characteristics / Specifications

• IR Resolution: 120 x 120 pxl
• Temperature range: -20° ÷ 650°C
• Image frequency: 50Hz
• Thermal sensitivity / NETD: <0.05°C @ 30°C / 50mK
• Field of view (FOV): 15.6° x 15.6°
• Focal length: f 1.0
• Lens: 7.5mm
• IFOV: 4.53mrad
• Focus mode: focus free
• Built-in camera: 2 MP, focus free
• Picture in Picture function: Yes
• AutoFusion image enhancement: Yes
• Uncertainty about the measure: ±2°C (±3.6°F) or ±2% of reading
• Digital zoom: 1x ÷ 32x
• Measurement tools (in live mode): none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
• Area measurement information: max, min, AVG
• IR Video recording: Yes
• Measurement corrections: emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
• Color Palettes: iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
• Span modes: Automatic / Manual / Histogram
• Internal memory: 3.4 GB
• On-camera report building: text annotation
• Communication modes: USB type C, Wi-fi, SD card
• Display: touch screen
• Battery operation time: 4 hours
• Size (LxWxH) (mm): 240 x 101 x 110mm
