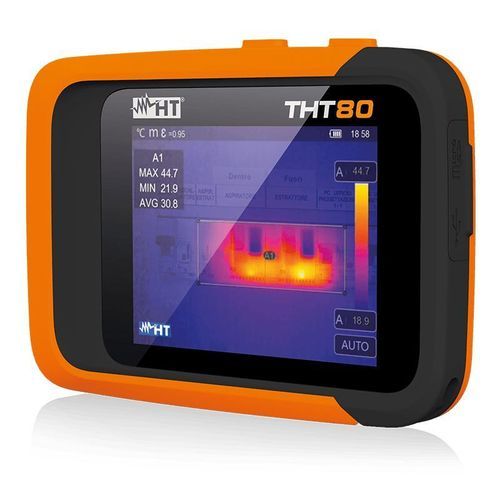

Digital camera THT80

thermalmeasuringinfrared

Product Overview
THT80 is the new compact professional thermal camera equipped with a high resolution 120x90pxl IR sensor, a measuring range of -20°C ÷ 550°C and a field of view of 50° x 37° which makes it suitable for use in frequent hydraulic, mechanical or electrical maintenance. It is also equipped with the AutoFusion function and a large color display with high brightness capacitive touch-screen, for immediate use, as well as being usable through the new and convenient HT Pro Camera application.

Functions and Specifications

• IR Resolution: 120 x 90 pxl
• Temperature range: -20° ÷ 550°C
• Image frequency: 50Hz
• Thermal sensitivity / NETD: <0.05°C @ 30°C / 50mK
• Field of view (FOV): 50° x 37°
• Focal length: f 1.13
• Lens: 2.3mm
• IFOV: 7.3mrad
• Focus mode: fixed focus
• Built-in camera: 2 MP, fixed focus, with LED flashlight
• Picture in Picture function: ●
• AutoFusion image enhancement: ●
• Uncertainty about the measure: ±2°C (±3.6°F) or ±2% of reading
• Digital zoom: 1x ÷ 32x
• Measurement tools (in live mode): 3 spots, central spot, hot / cold spot, 3 areas, horizontal vertical lines
• Area measurement information: max, min, center
• IR Video recording: ●
• Measurement corrections: emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
• Color Palettes: iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
• Span modes: Automatic / Manual / Histogram
• Built in LED light: ●
• Internal memory: 3.4 GB
• On-camera report building: textual notes
• Communication modes: USB type C, Wi-fi, micro SD
• Display: touch screen
• Battery operation time: 3 hours
• Size (LxWxH) (mm): 133 x 87 x 24mm

Standard Accessories

• Calibration report
• Rechargeable battery
• USB cable for PC connection
• Carrying bag
• SD card 32GB

Characteristics / Technical Specifications

• IR Resolution: 120 x 90 pxl
• Temperature range: -20° ÷ 550°C
• Image frequency: 50Hz
• Thermal sensitivity / NETD: <0.05°C @ 30°C / 50mK
• Field of view (FOV): 50° x 37°
• Focal length: f 1.13
• Lens: 2.3mm
• IFOV: 7.3mrad
• Focus mode: fixed focus
• Built-in camera: 2 MP, fixed focus, with LED flashlight
• Picture in Picture function: Yes
• AutoFusion image enhancement: Yes
• Uncertainty about the measure: ±2°C (±3.6°F) or ±2% of reading
• Digital zoom: 1x ÷ 32x
• Measurement tools (in live mode): 3 spots, central spot, hot / cold spot, 3 areas, horizontal vertical lines
• Area measurement information: max, min, center
• IR Video recording: Yes
• Measurement corrections: emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
• Color Palettes: iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
• Span modes: Automatic / Manual / Histogram
• Built in LED light: Yes
• Internal memory: 3.4 GB
• On-camera report building: textual notes
• Communication modes: USB type C, Wi-fi, micro SD
• Display: touch screen
• Battery operation time: 3 hours
• Size (LxWxH) (mm): 133 x 87 x 24mm
