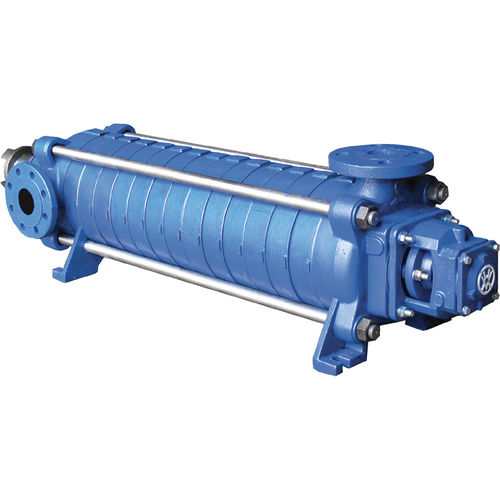

Water pump WH series

condensatewith electric motorself-priming

The WH series pumps are centrifugal, multi-stage horizontal pumps with ring sections with closed impellers and centrifugal-centripetal stators. The WH pumps are designed for pumping clean or slightly polluted liquids (maximum content of impurities – 100 mg/dm3o for the WHA type pumps and traces of non-abrasive particle content for the WHI, WHS and WHG) with temperatures of up to 140oC, within the resistance range of the materials used for their construction. Application Power industry – boiler feedwater, hot water, condensate, Industrial, pressure boosting and fire-fighting systems, Utility, municipal and drinking water systems, Distillate, solvents, fuels (including LPG) pumping stations, Filtration and reverse osmosis systems, Irrigation and snow-making systems, High pressure car washes. WHA/WHP pumps - general application The WHA/WHP pumps are horizontal multistage pumps with a self-priming member, designed for pumping water at temperatures of up to 140oC and liquid fuels and other liquids within the range of resistance of the materials used for their construction. In the WHA/WHP pumps the discharge flange is directed upwards, when the suction flange can be set as desired every 90°. WHS pumps - with self-priming member The WHS pumps are horizontal multistage pumps with a self-priming member, designed for pumping water at temperatures of up to 80oC and liquid fuels and other liquids within the range of resistance of the materials used for their construction. The WHS pumps are the special development of the WHA pump, in which aſter the last stage an additional circulation-vacuum member was applied.
