Medium excavator HX145LCR

crawlerTier 4 - finalconstruction

Overview
The Hyundai HX145LCR cabin is designed around operator needs: clear visibility, ergonomic controls and intuitive interfaces. Fast, powerful performance pairs with precise hydraulic control for versatile site work.

Key highlights

• Operating weight: 13,900 kg
• Bucket capacity: 0.23–0.73 m³

Images

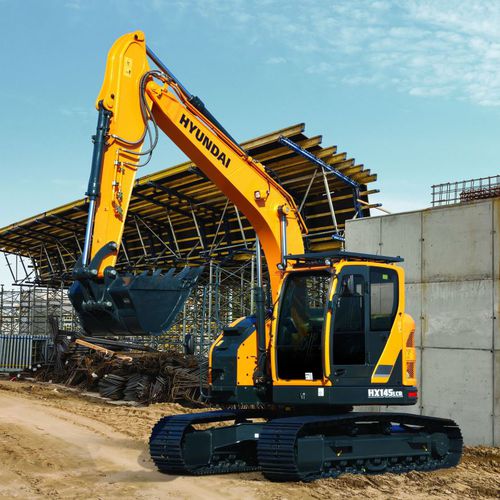

Studio and in-field photographs show the HX145LCR both stationary and in typical working conditions, highlighting cabin layout and attachment use.

Performance & powertrain

• Engine model: Perkins 1204F
• Engine power: 87 kW
• Main pump maximum flow: 2 × 126.8 l/min

Digging forces & dimensions

• Bucket breakout force: 10,400 kgf
• Arm crowd force: 8,200 kgf
• Digging depth: 4,950 mm
• Tail swing radius: 1,500 mm

Rugged design & reliability
The HX145LCR features an extra‑sturdy frame and reinforced superstructure. Wear‑resistant bushings and discs extend service intervals. Permanently sealed, lubricated track links maximise uptime and reduce operating costs.

Cabin & operator comfort

• Spacious cabin with excellent visibility
• High‑performance air conditioning
• Air suspension seat with height and weight adjustment
• Large touchscreen instrument cluster for machine status and warnings

Operator assistance & controls

• Intelligent Power Control (IPC): selectable speed, balance or efficiency modes
• ECO Gauge: instant fuel‑efficiency feedback (average, hourly, daily)
• Advanced Around View Monitoring (AAVM) — optional 360° view with IMOD for moving‑object detection
• Centralised instrument cluster with overload, travel alarm, inclination and urea level indicators

Serviceability & fleet management
Easy access to service points and clear maintenance status via the instrument cluster. Hyundai Hi‑MATE remote fleet management available for productivity analysis, service planning, geofencing and unauthorised‑use protection.

USPs

• Up to 11% improved fuel efficiency in leveling
• Up to 12% faster leveling operations
• Up to 90% reduction in PM & NOx emissions

Technical specifications

• Model: HX145LCR
• Brand: Hyundai
• Operating weight: 13,900 kg
• Bucket capacity: 0.23–0.73 m³
• Engine: Perkins 1204F — 87 kW
• Main pump max. flow: 2 × 126.8 l/min
• Bucket breakout force: 10,400 kgf
• Arm crowd force: 8,200 kgf
• Digging depth: 4,950 mm
• Tail swing radius: 1,500 mm
• Options/features: IPC, ECO Gauge, AAVM (optional), Centralised instrument cluster, Hi‑MATE fleet management, sealed & lubricated track links, air suspension seat
