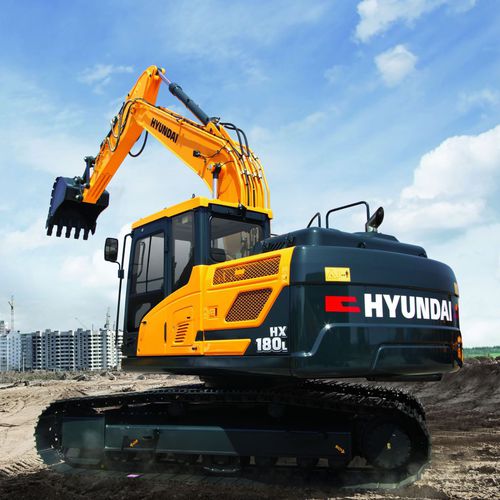

Medium excavator HX180L

crawlerTier 3construction

Overview
Step into the Hyundai HX180L cabin: ergonomically designed controls, improved visibility and an operator-focused layout deliver precise, intuitive handling and productive cycle times.

Performance & Powertrain
The HX180L combines a Perkins 1204E engine (96 kW) with a high-pressure common-rail fuel system and Hyundai’s Electronic Power Optimization System (EPOS). EPOS electronically links the engine control unit and the hydraulic system to provide multiple operating modes, electronic fuel management, auto-idle, hydraulic oil flow regulation and on-board diagnostics for consistent, controllable performance.

Key features

• Intelligent Power Control (IPC): Select speed, balance or efficiency modes; IPC adapts hydraulic pump delivery to match the task.
• ECO Gauge: Real-time fuel consumption feedback with average, hourly and daily monitoring for economical operation.
• Advanced Around View Monitoring (AAVM) (optional): 360° site awareness with Intelligent Moving Object Detection (IMOD) to alert when people or objects enter the working zone (~5 m).
• Centralised Instrument Cluster: Large touchscreen displaying machine status, overload warnings, travel alarm, inclination sensor and fluid levels.
• Easy Maintenance: Accessible service points and maintenance status visible via the instrument cluster to reduce downtime.
• Hi MATE: Hyundai remote fleet management system for productivity monitoring, service planning, geofencing and theft/unauthorised use alerts.

Performance highlights / USPs

• Up to 90% reduction in PM & NOx emissions.
• Up to 18% better fuel efficiency for truck loading and levelling tasks.
• Up to 12% faster levelling performance.

Technical details
Engine
Engine Model: Perkins 1204E
Engine Power: 96 kW

Main Pump
Max. Flow: 2 × 164 l/min

Digging Force
Bucket Breakout Force: 12,600 kgf
Arm Crowd Force: 9,280 kgf

Key dimensions / performance
Digging Depth: 6,560 mm
Tail Swing Radius: 2,480 mm

Specifications

• Model: HX180L
• Brand: Hyundai
• Operating weight: 18,600 kg
• Bucket capacity: 0.39 m³ - 1.05 m³
• Engine model: Perkins 1204E
• Engine power: 96 kW
• Main pump max. flow: 2 × 164 l/min
• Bucket breakout force: 12,600 kgf
• Arm crowd force: 9,280 kgf
• Digging depth: 6,560 mm
• Tail swing radius: 2,480 mm
