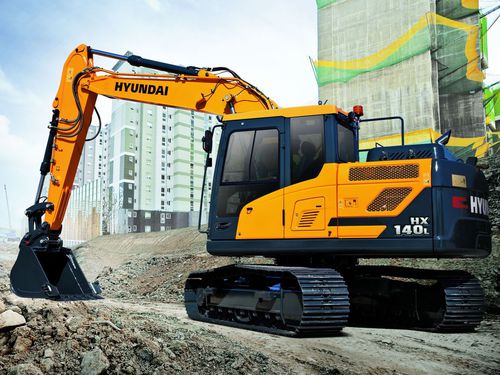

Medium excavator HX140 LC

crawlerTier 4 - finalconstruction

Overview
The HX140LC delivers excellent durability and trusted reliability. The engine and hydraulic system provide high performance and productivity. The design optimises combustion and torque for faster cycles and maximum results. Choose between four work modes, auto-idle and machine diagnostics. Auto shutdown reduces fuel consumption during non-working conditions. The cabin is spacious with excellent visibility, high-performance air conditioning and extra storage. The standard air suspension seat includes height and weight adjustments.

Key highlights

• Operation weight: 14,050 kg
• Bucket capacity: 0.23 m³ - 0.71 m³
• Digging depth: 4,950 mm

Performance & efficiency

• Intelligent Power Control (IPC) to tailor machine performance (speed, balance, efficiency modes)
• ECO Gauge: instant fuel efficiency feedback and consumption monitoring (average, hourly, daily)
• Improved cycle time — up to 5% faster
• Up to 5% more fuel-efficient in leveling
• 90% reduction in PM & NOx

Operator comfort & controls

• Spacious cabin with excellent visibility
• High-performance air conditioning
• Standard air suspension seat with height and weight adjustment
• 8-inch touchscreen display with centralized switches for clear machine function control
• Centralised instrument cluster: overload warnings, travel alarm, inclination sensor, heater/wipers/lamps status, urea level and external temperature

Serviceability & telematics

• Easy maintenance with fast access to key service points and clear maintenance information
• Hi-MATE remote fleet management system: remote fleet management, productivity evaluation, servicing planning, geofencing and theft protection

Technical details (table extracts)
Engine
Engine Model: Cummins QSF 3.8
Engine Power: 95 kW

Main Pump
Max. Flow: 2 × 126.8 l/min

Digging Force
Bucket Breakout Force: 10,400 kgf
Arm Crowd Force: 8,200 kgf

Dimensions / Reach
Digging Depth: 4,950 mm
Tail Swing Radius: 2,330 mm

Additional notes
Four selectable work modes, auto-idle, auto shutdown and machine diagnostics support fuel savings and optimized operation.

Caractéristiques / spécifications techniques

• Denomination commerciale (model): HX140LC
• Brand: Hyundai
• Operation Weight: 14,050 kg
• Bucket Capacity: 0.23 m³ - 0.71 m³
• Engine Model: Cummins QSF 3.8
• Engine Power: 95 kW
• Main Pump Max. Flow: 2 × 126.8 l/min
• Bucket Breakout Force: 10,400 kgf
• Arm Crowd Force: 8,200 kgf
• Digging Depth: 4,950 mm
• Tail Swing Radius: 2,330 mm
• Key features: Intelligent Power Control (IPC), ECO Gauge, 8-inch touchscreen, Hi-MATE telematics, air suspension seat, easy maintenance
