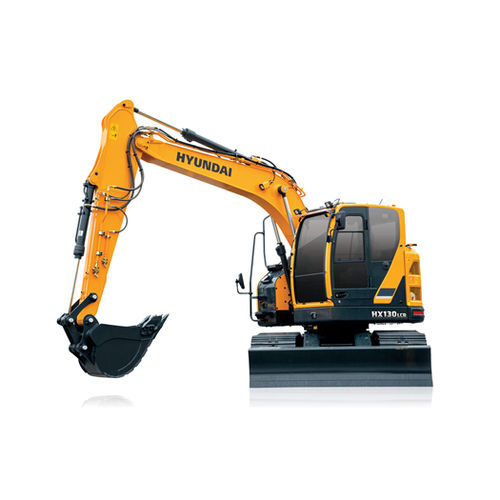

Medium excavator HX130LCR

crawlerdieselconstruction

Overview
The Hyundai HX130LCR is a compact-radius crawler excavator designed for operations in confined and urban job sites. It combines a short tail swing profile with a Perkins 854F DPF-equipped engine to deliver productive digging and improved fuel efficiency while maintaining manoeuvrability for roadwork, rail corridors and bridge areas.

Key highlights

• Operating weight: 12,700 kg
• Bucket capacity: 0.30–0.59 m³
• Short tail swing design for working in confined areas
• DPF-equipped Perkins engine for reduced emissions and fuel efficiency

Performance & efficiency

• Intelligent Power Control (IPC): selectable modes (speed / balance / efficiency) to adapt hydraulic output to the task
• ECO Gauge: real-time fuel efficiency feedback with average, hourly and daily consumption data
• Manufacturer-stated fuel savings: up to 9% in truck loading and up to 5% in leveling operations

Operator environment & safety

• 8-inch touchscreen display centralizes controls and provides clear machine information
• Central instrument cluster with overload warnings, travel alarm and inclination sensor
• Optional AAVM (All-Around View Monitoring) with IMOD for a 360° virtual view and moving-object detection within ~5 m

Maintenance & telematics

• Hi MATE remote fleet management for productivity monitoring, maintenance planning and geofencing
• Accessible service points and clear maintenance information via the instrument cluster for efficient upkeep

Manufacturer USPs

• Manufacturer-claimed reduction of PM & NOx by up to 90%
• Designed for sustained hydraulic and engine performance under demanding conditions

Technical details
Engine
Engine model: Perkins 854F
Engine power: 55 kW

Main pump
Max. flow: 2,126 l/min

Digging forces
Bucket breakout force: 10,369 kgf
Arm crowd force: 6,443 kgf

Dimensions / reach
Maximum digging depth: 5,020 mm
Tail swing radius: 1,500 mm

Characteristics / technical specifications

• Model: HX130LCR
• Brand: Hyundai
• Operating weight: 12,700 kg
• Bucket capacity: 0.30–0.59 m³
• Engine model: Perkins 854F
• Engine power: 55 kW
• Main pump max flow: 2,126 l/min
• Bucket breakout force: 10,369 kgf
• Arm crowd force: 6,443 kgf
• Maximum digging depth: 5,020 mm
• Tail swing radius: 1,500 mm
