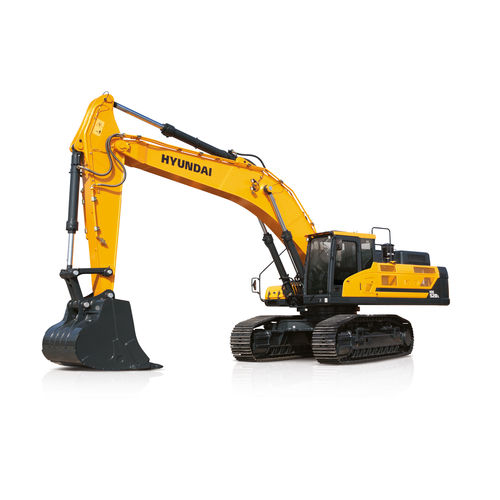

Large excavator HX520L

crawlerTier 4 - finalconstruction

Overview
Step into the HX520L operator cabin: ergonomically arranged controls, enhanced visibility and precise, intuitive machine response. The HX520L is designed for heavy earthmoving tasks while optimising fuel consumption and uptime.

Key features

• Operation weight: 52,400 kg; bucket capacity range: 1.00–3.20 m³ for application flexibility.
• Spacious, operator-focused cabin with clear controls and high-performance air conditioning.
• Reclining, height- and weight-adjustable suspension seat with headrest and adjustable armrest; emergency engine stop at base of seat.
• Longer maintenance intervals, centralised grease points and easy access to service points.

Highlighted technologies & benefits

• Intelligent Power Control (IPC) — selectable modes (speed, balance, efficiency); IPC regulates hydraulic pumps to suit the task.
• ECO Gauge — instant fuel-efficiency feedback with average, hourly and daily consumption monitoring.
• Advanced Around View Monitoring (optional) — 360° overview with IMOD (Intelligent Moving Object Detection) that senses and warns for people or objects within 5 m.
• Centralised instrument cluster — large touchscreen display showing machine status, overload warnings, travel alarm, inclination sensor, AUX/air conditioning indicators and urea level.
• Hi-MATE remote fleet management — remote productivity monitoring, service planning and geofencing.

Performance & benefits
Solid performance combined with excellent fuel efficiency and robust components delivers consistent productivity. Fast, straightforward servicing reduces downtime and total cost of ownership.

Specifications summary
Operation weight: 52,400 kg
Bucket capacity: 1.00 m³ - 3.20 m³

Technical details
Engine - Engine Model: Scania DC13 084A
Engine - Engine Power: 316 kW
Main Pump - Max. Flow: 2 x 380 l/min
Digging Force - Bucket Breakout Force: 28,600 kgf
Digging Force - Arm Crowd Force: 29,700 kgf
Digging Depth: 11,870 mm
Tail Swing Radius: 3,940 mm

Characteristics / technical specifications

• Engine model: Scania DC13 084A
• Engine power: 316 kW
• Main pump max flow: 2 x 380 l/min
• Bucket breakout force: 28,600 kgf
• Arm crowd force: 29,700 kgf
• Digging depth: 11,870 mm
• Tail swing radius: 3,940 mm
• Operation weight: 52,400 kg
• Bucket capacity range: 1.00 m³ – 3.20 m³
• High-performance oil filter with 500-hour oil change interval
• Optional Advanced Around View Monitoring (AAVM) with IMOD for 360° detection
• Intelligent Power Control (IPC) with speed, balance and efficiency modes
• ECO Gauge for fuel-efficiency feedback and monitoring
• Centralised instrument cluster with large touchscreen display
• Hi-MATE remote fleet management for productivity monitoring, service planning and geofencing
