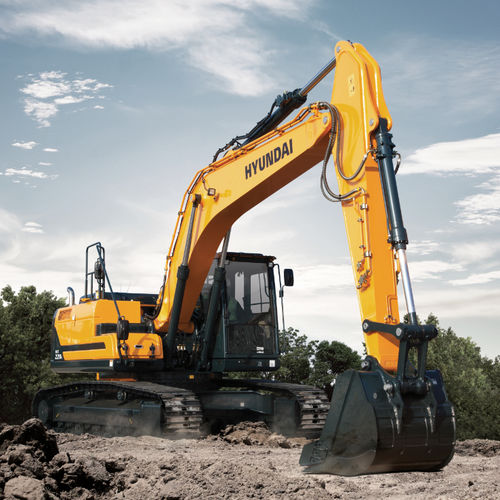

Medium excavator HX220L

crawlerTier 4 - finalconstruction

Overview
The Hyundai HX220L places the operator in a comfortable, sound-suppressed cabin with excellent visibility and simple, intuitive joystick controls. The machine delivers quick, powerful performance with precise hydraulic control and features durable construction to maximise uptime and extend service intervals.

Key specifications
Operation weight: 22,100 kg
Bucket capacity: 1.34 m³
Engine model: Cummins QSB6.7
Engine power: 136 kW
Main pump — Max. flow: 2 × 222 l/min
Bucket breakout force: 15,500 kgf
Arm crowd force: 15,400 kgf
Digging depth: 6,730 mm
Tail swing radius: 2,890 mm

Features

• Intelligent Power Control (IPC) — regulates hydraulic pumps with selectable speed, balance or efficiency modes to match the task.
• ECO Gauge — real-time fuel-efficiency feedback with average, hourly and daily consumption monitoring.
• Advanced Around View Monitoring (AAVM) — optional 360° view with Intelligent Moving Object Detection (IMOD) to alert when people or objects approach within five metres.
• Centralised instrument cluster — large touchscreen showing machine status, operating parameters, overload warnings, travel alarm, inclination sensor and indicators (heater/wiper/lamp/urea level).
• Hi-MATE remote fleet management — remote productivity monitoring, service planning, geofencing and secure fleet control.
• Easy maintenance design — centralised grease points, accessible service items and efficient filters to reduce workshop time.
• Simple joystick controls and AUX buttons for additional hydraulic equipment (e.g. hydraulic clamps).
• Sound-suppressed cabin and ergonomic layout to reduce operator fatigue.
• Durable undercarriage and wear parts for extended service intervals and improved uptime.

Performance benefits

• Significant reductions in PM and NOx emissions through advanced engine controls.
• Faster truck loading — up to 5% improvement in cycle loading times.
• Improved fuel efficiency — up to 12% more efficient in truck loading and leveling operations.

Technical specifications (summary)

• Operation weight: 22,100 kg
• Bucket capacity: 1.34 m³
• Engine model: Cummins QSB6.7
• Engine power: 136 kW
• Main pump — Max. flow: 2 × 222 l/min
• Bucket breakout force: 15,500 kgf
• Arm crowd force: 15,400 kgf
• Digging depth: 6,730 mm
• Tail swing radius: 2,890 mm
• Cabin: large touchscreen instrument cluster, sound suppression, excellent visibility
• Optional: AAVM with IMOD
• Telematics: Hi-MATE remote fleet management
