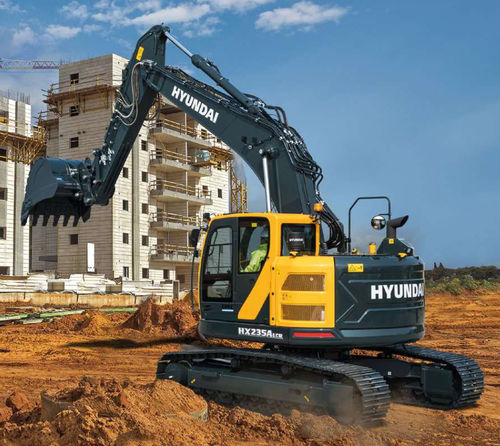

Medium excavator HX235ALCR

crawlerdieselcompact

Short description
The HX235A LCR features the new A-series upper frame design, which significantly increases lifting capacity. This is combined with reduced tail swing and a new lifting mode, making this powerful machine an excellent all-rounder for digging and moving heavy loads.

Highlights

• Operation Weight: 24000 kg
• Engine Model: Cummins B6.7 Stage V
• Engine Power: 129 kW
• Bucket Capacity: 0.80 - 1.34 cubic meter

Technical details (select)
Digging Depth: 6380 mm
Breakout Force: 152/165 kN
Tail Swing Radius: 1780 mm
Driving & Braking – Gradeability: 70 %; Max. Travel Speed (high): 5.6 km/h; Gradeability: 11.3 rpm

Product Overview
The HX235A LCR (Compact Radius) Crawler Excavator is part of the successful A-Series range. It features a short rear tail with a curved counterweight that rolls along the tracks with minimal overhang, minimising outswing in space-restricted areas. Durability is improved as the risk of collision with nearby walls or obstacles is reduced. Despite its compact design, the HX235A LCR is remarkably stable when lifting and transporting heavy objects or materials. The centred boom concept delivers superb lift capacity while the sturdy undercarriage provides stability and extra confidence when working on uneven surfaces.

Compact and Powerful

• New A-series upper frame design increases lifting capacity.
• Eco-friendly Cummins B6.7 engine delivers improved power and 31% more torque than its predecessor.
• EPFC (Electronic Pump Flow Control) improves fine control and reduces fuel consumption.
• New lifting mode increases precision and lift capability via RPM reduction, power boost activation and enhanced pump flow control.
• Eco Report feature displays real-time machine performance for efficient working habits.

Strong and Reliable

• Reinforced upper and lower frame structures and robust attachments for built-in strength and reliability.
• Improved engine reliability by removing the EGR and integrating exhaust after treatment into a simplified single-module system for easier maintenance.
• High-grade hydraulic hoses with outstanding resistance to heat and pressure.
• Cabin structure reinforced with high-strength steel certified to ROPS and FOPS safety standards.
• Cooling module tested to protect productivity in tough working environments.
• Improved bucket wear resistance using a new material.

Complete Comfort

• Key On Init Work Mode saves attachment mode settings so the machine starts in the correct work mode.
• Menu functions can be owner-set and password locked to restrict access.
• Combination speed setting system allows balancing load sensitivity and boom priority against arm and swing.
• Wide 8-inch touchscreen monitor for easy, efficient control.
• Improved visibility to the rear and bottom right-hand side, plus safer cab access.
• Accelerator, remote air conditioner controller and instrument cluster operable using integrated jog dial module.

Complete Protection

• Advanced Around View Monitoring (AAVM) camera system provides a 360° overview of the immediate working environment.
• Intelligent Moving Object Detection (IMOD) senses and warns when people or objects come within five metres of the machine.
• Electronic swing parking system controls the swing brake to improve safety and efficiency.
• Audible and visible seat belt warning alarm.
• Auto safety lock feature prevents unintentional ignition; when activated the excavator is not controlled by the RCV lever.

FAQs (select)
Does the HX235A LCR comply with the European Stage V emission levels? Yes. The HX235A LCR complies with all the European Stage V emission levels.
Does the HX235A LCR have a camera system? Yes. It has Advanced Around View Monitoring (AAVM) with IMOD technology.
Does the HX235A LCR have auto safety lock? Yes. The auto safety lock prevents unintentional ignition.
What is the tailswing radius of the HX235A LCR? 1,780 mm

Caractéristiques / spécifications techniques

• Operation Weight: 24000 kg
• Engine Model: Cummins B6.7 Stage V
• Engine Power: 129 kW
• Bucket Capacity: 0.80 - 1.34 cubic meter
• Digging Depth: 6380 mm
• Breakout Force: 152/165 kN
• Tail Swing Radius: 1780 mm
• Gradeability: 70 %
• Max. Travel Speed (high): 5.6 km/h
• Gradeability (as listed): 11.3 rpm
