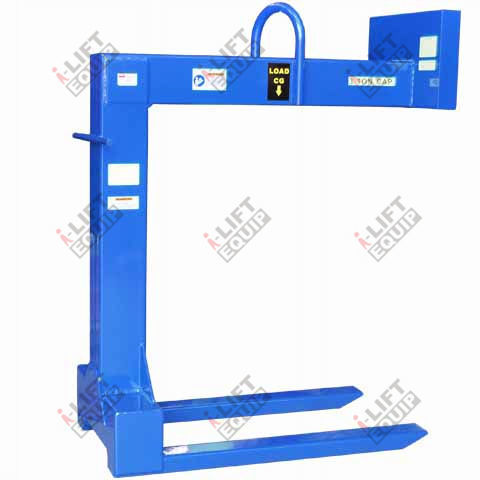

Pallet lift PL-F series

Product description

• Converts overhead crane to lift truck.
• Counterbalanced to hang level when empty.
• Designed for easy maintenance.
• Facilitates loading and unloading in hard-to-access areas.
• Complies with ASME standards.

Models and specifications
i-LIFT NO | Model No. | Work Load Limit WLL kg(lb.) | Fork Width mm(in.) | Effective Height mm(in.) | Fork Length mm(in.) | Hook Height mm(in.)
2313402 | PL-F101 | 1000 (2200) | 635 (25) | 1219 (48) | 914.4 (36) | 1460 (57.5)
2313403 | PL-F102 | 1000 (2200) | 635 (25) | 1219 (48) | 1066.8 (42) | 1460 (57.5)
2313404 | PL-F103 | 1000 (2200) | 635 (25) | 1219 (48) | 1219 (48) | 1486 (58.5)
2313405 | PL-F201 | 2000 (4400) | 635 (25) | 1219 (48) | 914.4 (36) | 1511 (59.5)
2313406 | PL-F202 | 2000 (4400) | 635 (25) | 1219 (48) | 1066.8 (42) | 1511 (59.5)
2313407 | PL-F203 | 2000 (4400) | 635 (25) | 1219 (48) | 1219 (48) | 1511 (59.5)
2313408 | PL-F301 | 3000 (6600) | 635 (25) | 1219 (48) | 1066.8 (42) | 1562 (61.5)
2313409 | PL-F302 | 3000 (6600) | 685.8 (27) | 1219 (48) | 1219 (48) | 1562 (61.5)
2313410 | PL-F303 | 3000 (6600) | 762 (30) | 1219 (48) | 1371.6 (54) | 1562 (61.5)

Features / Technical specifications

• Brand: i-LIFT
• Series: PL-F series
• Function: converts overhead crane to lift truck for pallet handling and inaccessible-area loading/unloading
• Compliance: ASME standards
• Counterbalanced design: hangs level when empty for safety and convenience
• Maintenance: designed for easy maintenance
• Available capacities: 1000 kg (2200 lb), 2000 kg (4400 lb), 3000 kg (6600 lb)
• Fork widths available: 635 mm (25 in), 685.8 mm (27 in), 762 mm (30 in)
• Effective height (all listed models): 1219 mm (48 in)
• Fork length range by model: 914.4 mm (36 in), 1066.8 mm (42 in), 1219 mm (48 in), 1371.6 mm (54 in)
• Hook height range by model: 1460 mm (57.5 in) to 1562 mm (61.5 in)
