750 kg shop crane SCH series

hydraulictelescopicwith counterweight

Product overview

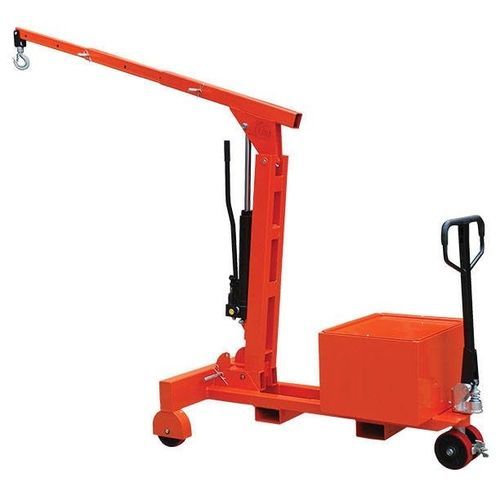

Counterbalance shop crane. The counterbalance shop crane is a manual hydraulic floor crane designed to lift and position heavy loads while providing extended reach and improved accessibility around obstacles. It uses a rear counterweight system (ballast included) to balance the load, allowing the lifting arm to extend further without front legs obstructing the working area.

Key features

• Manual counterbalance floor crane available in 550 kg and 750 kg capacity models (SCH05, SCH075)
• Telescopic extendable boom with adjustable reach from 930 mm to 2080 mm
• Lifting capacity varies with boom extension to maintain safe operation
• Maximum lifting height with boom fully extended: 2750 mm
• Double-action hydraulic pump (rated 1000 kg) for faster initial lifting strokes
• 360° swivel hook for flexible load positioning
• Designed for industrial and workshop use with rear counterweight to avoid front-leg obstruction
• Fitted with fork sleeves for easy handling by forklift or pallet truck
• Rear ballast (counterweight) included

Capacity table (per product listing)
i-LIFT NO. | Model No. | Capacity kg (lb.) | Max load at jib length 925 mm (kg(lb.)) | Max load at jib length 1210 mm (kg(lb.)) | Max load at jib length 1500 mm (kg(lb.)) | Max load at jib length 1800 mm (kg(lb.))
SCH05 | SCH05 | 550 (1210) | 550 (1210) | 450 (990) | 350 (770) | 250 (550)
SCH075 | SCH075 | 750 (1650) | 750 (1650) | 500 (1100) | 380 (836) | 260 (572)

Details

• Rear counterweight design prevents front legs from blocking the work area
• Telescopic boom extends to increase reach for obstacle avoidance and precise positioning
• Double pump quick-lift reduces the number of initial pumping strokes
• Suitable for workshops, maintenance facilities and industrial environments requiring extended reach
• Product specification sheet available for download from the product page

Technical specifications

• Series: SCH Series
• Models: SCH05 (550 kg), SCH075 (750 kg)
• Rated capacities: SCH05 — 550 kg (1210 lb); SCH075 — 750 kg (1650 lb)
• Telescopic boom reach: adjustable from 930 mm to 2080 mm
• Maximum lifting height (boom fully extended): 2750 mm
• Hydraulic system: double-action hydraulic pump rated 1000 kg
• Hook: 360° swivel hook
• Counterweight: rear ballast included
• Fork sleeves: fitted for forklift handling
• Capacity at jib lengths (example values per model): SCH05 — 925 mm: 550 kg (1210 lb), 1210 mm: 450 kg (990 lb), 1500 mm: 350 kg (770 lb), 1800 mm: 250 kg (550 lb); SCH075 — 925 mm: 750 kg (1650 lb), 1210 mm: 500 kg (1100 lb), 1500 mm: 380 kg (836 lb), 1800 mm: 260 kg (572 lb)
