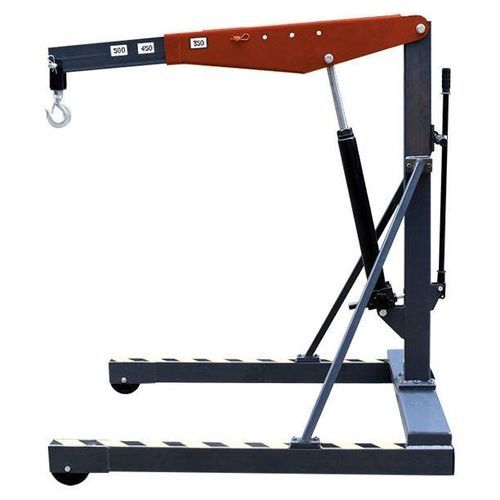

500 kg shop crane SA series

1 tonhydraulictelescopic

Overview
The SA Euro Shop Crane is a manual hydraulic lifting crane designed for lifting, positioning and transporting heavy loads in workshops, warehouses and maintenance environments. It is suited for handling machinery, engines and palletized loads that require controlled, precise lifting.

Key features

• Two capacity models: 500 kg (SA500) and 1000 kg (SA1000)
• Extendable boom adjustable in 4 positions
• 360° swivel hook for flexible load positioning
• Double-pump quick-lift system
• Hard chrome piston
• Built-in overload safety valve
• Dead-man safety system
• 4 wheels including 2 swivel casters for maneuverability
• Suitable for European standard pallets

Capacity & residual capacity (table)
i-LIFT NO. | Model No. | Rated capacity (kg) | Residual capacity P1 (kg) | Residual capacity P2 (kg) | Residual capacity P3 (kg) | Residual capacity P4 (kg)
SA500 | SA500 | 500 | 500 | 450 | 400 | 350
SA1000 | SA1000 | 1000 | 1000 | 900 | 800 | 700

Details
Manual Euro shop crane available in 500 kg and 1000 kg versions
Extendable boom with 4 adjustable positions and 360° swivel load hook
Double-pump quick lift for faster hoisting cycles
Hard chrome piston for wear resistance
4 wheels with 2 swivel casters for easy maneuvering
Suitable for European standard pallets
Dead-man safety system and built-in overload valve

Specifications

• Series: SA-Series
• Models: SA500, SA1000
• Rated capacities: 500 kg / 1000 kg
• Residual capacities by boom position (P1–P4): SA500 — 500 / 450 / 400 / 350 kg; SA1000 — 1000 / 900 / 800 / 700 kg
• Boom: extendable with 4 adjustable positions
• Hook: 360° swivel hook
• Pump: double-pump quick-lift system
• Piston: hard chrome piston
• Safety: built-in overload safety valve; dead-man safety system
• Wheels: 4 wheels including 2 swivel casters
• Finish: corrosion-resistant painted finish
• Application: workshops, warehouses, maintenance; suitable for European standard pallets
