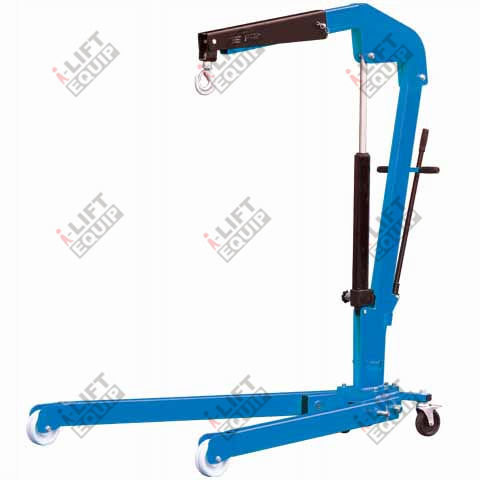

2 ton shop crane SCB series

500 kg1 tonhydraulic

Description

• Larger capacity than normal shop cranes at 3 positions for flexible lifting ranges.
• Chrome plated lifting piston and pump piston for corrosion resistance and smooth operation.
• Relief valve to prevent overload and protect hydraulic components.
• 360° swivel operating handle for easy manoeuvring in confined workshop spaces.
• Forged heavy-duty swivel hook for secure load handling.
• 125% overload testing carried out before delivery to ensure safety and reliability.
• Delivered flat packed to save space in transport and simplify storage.
• Conforms to CE safety standard.

Models and Capacities
i-LIFT NO | Model No. | Capacity at Position P1 kg(lb.) | Capacity at Position P2 kg(lb.) | Capacity at Position P3 kg(lb.) | Capacity at Position P4 kg(lb.) | Overall Width mm(in.)
2312901 | SC500B | 500 (1100) | 425 (935) | 350 (770) | - | 960 (37.8)
2312902 | SC1000B | 1000 (2200) | 800 (1760) | 700 (1540) | - | 1100 (43.3)
2312903 | SC2000B | 2000 (4400) | 1700 (3740) | 1500 (3300) | - | 1170 (46.1)

Technical specifications

• Series: SCB SERIES
• Brand: i-LIFT
• Models: SC500B, SC1000B, SC2000B
• Capacities (P1 / P2 / P3): see Models and Capacities block above
• Overall widths: SC500B 960 mm (37.8 in), SC1000B 1100 mm (43.3 in), SC2000B 1170 mm (46.1 in)
• Chrome plated lifting piston and pump piston for corrosion resistance and smooth operation
• Relief valve to prevent overload and protect hydraulic system
• 360° swivel operating handle for improved ergonomics
• Forged heavy-duty swivel hook for reliable load attachment
• 125% overload testing carried out before delivery
• Delivered flat packed to save transport and storage space
• Conforms to CE safety standard
