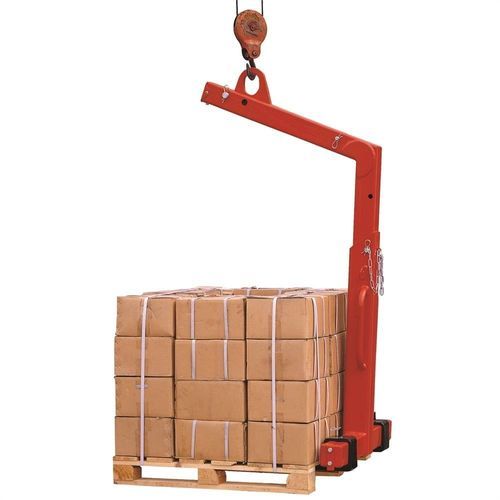

Adjustable pallet fork LH-H series

for lifting equipmentfor palletpallet

Product Overview
Self-balancing crane forks designed for safe and efficient pallet handling in construction sites, warehouses and industrial lifting operations. Available in two models with rated capacities of 2,000 kg and 3,000 kg. Adjustable fork width and self-balancing adjustable height provide stable load handling across various pallet sizes and lifting conditions.

Key Features

• Self-balancing mechanism for stable pallet handling
• Rated capacity: 2000 kg (4400 lb) and 3000 kg (6600 lb) depending on model
• Adjustable fork width
• Self-balancing adjustable height
• Suitable for construction sites, warehouses and industrial use

Models and Specifications (table)
i-LIFT NO. | Model No. | Work Load Limit WLL kg(lb.) | Fork Width mm(in.) | Effective Height mm(in.) | Fork Length mm(in.) | Hook Height mm(in.)
LH-H30 | 3000 (6600) | Adjustable, 450-900 (17.7-35.4) | 1300-2000 (51.2-78.7) | 1000 (39.4) | 1720-2420 (67.7-95.3)
LH-H20 | 2000 (4400) | Adjustable, 400-900 (15.7-35.4) | 1300-2000 (51.2-78.7) | 1000 (39.4) | 1655-2355 (65.2-92.7)

Features / Technical specifications

• Series name: LH-H Series
• Rated capacity: 2000 kg (4400 lb) for LH-H20; 3000 kg (6600 lb) for LH-H30
• Adjustable fork width: LH-H20 = 400-900 mm (15.7-35.4 in); LH-H30 = 450-900 mm (17.7-35.4 in)
• Effective height range (both models): 1300-2000 mm (51.2-78.7 in)
• Fork length (both models): 1000 mm (39.4 in)
• Hook height range: LH-H20 = 1655-2355 mm (65.2-92.7 in); LH-H30 = 1720-2420 mm (67.7-95.3 in)
• Application: designed for safe pallet handling with self-balancing mechanism, suitable for construction sites, warehouses and industrial lifting
• Construction: robust, durable structure with adjustable height and fork width for different pallet sizes
