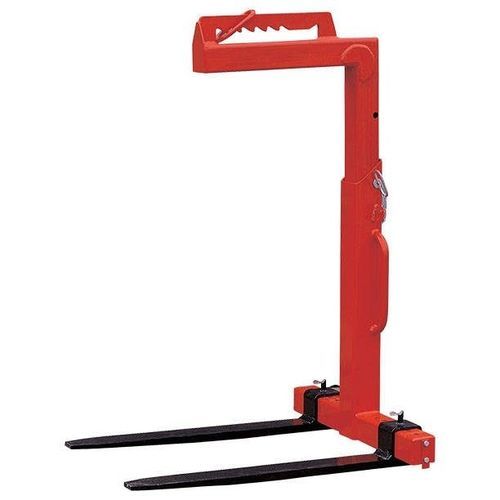

Pallet lift CK series

Product overview
Adjustable Crane Forks (CK Series) are crane-mounted pallet lifters available in capacities from 1 to 5 metric tons. They provide adjustable fork width and adjustable hook height to optimize load balance for different pallet sizes and lifting conditions. Suitable for industrial, construction and logistics operations requiring controlled crane handling of palletized goods.

Details of Adjustable Crane Forks

• Capacity range: 1 000 to 5 000 kg (1–5 t)
• Adjustable fork width for different pallet sizes
• Adjustable effective hook height for improved load balance
• Standard fork length: 1000 mm

Models and specifications (table)
CK50 | 5000 (11000) | 530-1000 (20.8-40) | 1300-2000 (51.2-78.7) | 1000 (39.4) | 1700-2400 (66.9-94.5)
CK30 | 3000 (6600) | 450-900 (17.7-35.4) | 1300-2000 (51.2-78.7) | 1000 (39.4) | 1670-2370 (65.7-93.3)
CK20 | 2000 (4400) | 400-900 (16-35.4) | 1300-2000 (51.2-78.7) | 1000 (39.4) | 1640-2340 (64.6-92.1)
CK10 | 1000 (2200) | 350-900 (13.8-35.4) | 1100-1600 (43.3-63.0) | 1000 (39.4) | 1390-1890 (54.7-74.4)

Technical specifications

• Brand: i-LIFT
• Product family: CK Series Pallet Lifter (Adjustable Crane Forks)
• Model capacities: CK10 = 1000 kg; CK20 = 2000 kg; CK30 = 3000 kg; CK50 = 5000 kg
• Fork width (adjustable): CK10 350-900 mm; CK20 400-900 mm; CK30 450-900 mm; CK50 530-1000 mm
• Effective height ranges: CK10 1100-1600 mm; CK20/CK30 1300-2000 mm; CK50 1300-2000 mm
• Fork length (standard): 1000 mm
• Hook height adjustable ranges: CK10 1390-1890 mm; CK20 1640-2340 mm; CK30 1670-2370 mm; CK50 1700-2400 mm
• Intended use: lifting palletized loads with a crane; adjustable width and height support load balance and safe handling
