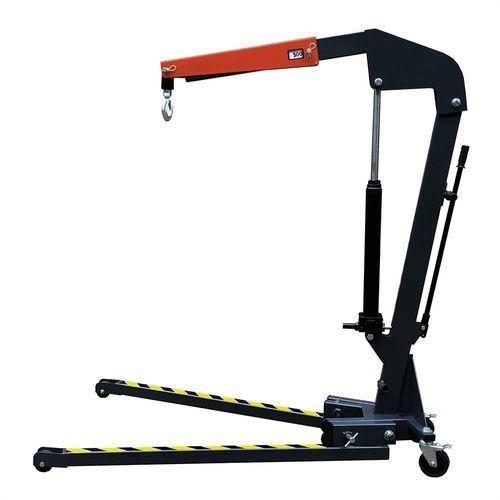

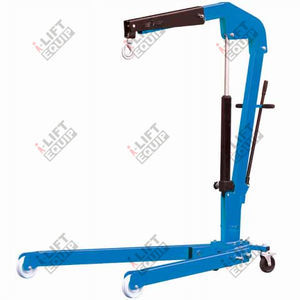

2 ton shop crane SC series

500 kg1 tonhydraulic

Overview
SC-Series foldable shop crane offers heavy lifting capability in a foldable frame for space-saving storage and transport. Supplied complete with hydraulic ram, chain and hook, it is suitable for lifting engines, machinery and heavy components for moving, repair, maintenance and assembly.

Key features

• Manual foldable shop crane for loads from 500 to 2000 kg
• Extendable boom adjustable in 3 positions (3-position telescopic jib)
• Hydraulic lift with double pump for quick lift
• Dead-man system for controlled operation
• Built-in safety overload valve
• 6 swivel wheels and 360° swivel hook with safety catch for high maneuverability
• Foldable design for space-saving storage and easy transport
• Hard chrome press cylinder and pump for wear resistance

Available models and capacities / dimensions
i-LIFT NO. | Model No. | Load capacity P1 (kg) | Load capacity P2 (kg) | Load capacity P3 (kg) | Dimension A (mm) | Dimension D (mm)
--- | SC500 | 500 | 425 | 350 | 1410 | 895
--- | SC1000 | 1000 | 800 | 700 | 1675 | 1230
--- | SC2000 | 2000 | 1700 | 1500 | 1690 | 1290

Intended use
Designed for workshops and garages to lift engines, machinery and heavy components during moving, repair, maintenance and assembly operations.

Specifications

• Series: SC-Series
• Load range: 500 kg to 2000 kg depending on model
• Telescopic jib: 3 positions providing three variable capacity settings
• Hydraulic system: hydraulic ram with double-pump quick lift
• Safety: dead-man system and built-in safety overload valve; swivel hook with safety catch
• Maneuverability: 6 swivel wheels, 360° swivel hook
• Construction: foldable design for compact storage; hard chrome press cylinder and pump
• Typical applications: engine lifting, machinery handling, maintenance and assembly
• Dimensions and capacities: see table above for model-specific A and D dimensions and P1/P2/P3 capacities
