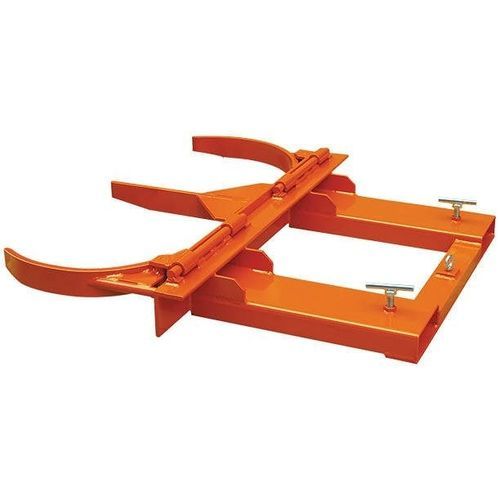

Manual drum lifter DG series

forkwith gripping toolforklift mounted

Product Overview
The DG-Series Gator Grip forklift drum grab is a fork-mounted attachment for safe, efficient handling of drums. It slips onto standard forks and is secured with hand-tightening screws; no hydraulic or electrical connections are required. The unit lifts, transports and deposits single or double drums (steel or plastic) while the operator remains in the driving position. Clamping is applied automatically by the load of the drum and releases automatically when the forks are lowered.

Details of DG20 Drum Grabs

• For 440 kg rimmed steel drums
• Transports 2 drums of 220 L each
• Fork sleeves: 175 x 60 mm
• Suitable for vertical-position stacking
• Automatic release by lowering the forks
• Simple hand operation, no power supply required
• Equipped with tightening screws to secure device to forks

Details of DG30 Drum Grabs

• For 440 kg rimmed steel drums
• Transports 1 or 2 drums of 220 L depending on configuration
• Fork sleeves: 135 x 55 mm (pockets 135 x 50 mm in table)
• Suitable for vertical-position stacking
• Automatic release by lowering the forks
• Simple hand operation, no power supply required
• Equipped with tightening screws to secure device to forks

Technical table
i-LIFT NO. | Model No. | Capacity kg (lb) | Drum Size L (gal) | Fork Opening mm (in) | Fork Pockets / Sleeves mm (in) | Overall Dimensions mm (in)
- | DG20 | 440 | 220 | 623 | 175×60 | 1170×1096×192
- | DG30 | 440 | 220 | 623 | 135×50 | 1082×710×141

Technical specifications

• Series: DG-Series Gator Grip Forklift Drum Grab
• Operation: Fork-mounted; slip onto forks and tighten hand screws; lifts, transports and deposits drums without hydraulic or electrical connections
• Construction: Heavy-duty steel construction
• Automatic clamping: Firm pressure applied by the loaded drum; automatic release when deposited (lowering the forks)
• Suitable for: single drum, double drums, steel drums, plastic/poly drums
• DG20 – Capacity: 440 kg; Drum size: 220 L; Fork opening: 623 mm; Fork pockets / sleeves: 175 x 60 mm; Overall dimensions: 1170 × 1096 × 192 mm
• DG30 – Capacity: 440 kg; Drum size: 220 L; Fork opening: 623 mm; Fork pockets / sleeves: 135 × 50 mm (sleeves 135 × 55 mm); Overall dimensions: 1082 × 710 × 141 mm
• Features: Ideal for vertical stacking; easy manual operation; tightening screws secure the device to forks
