Storage rack RMC series

What is Portable Stack Rack?

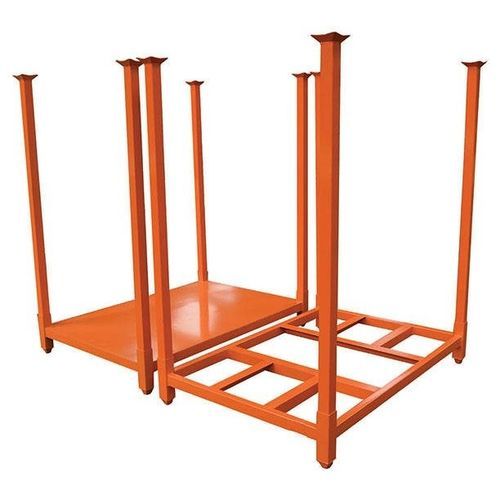

The portable stack rack is an industrial storage solution for flexible material handling. It supports up to 1.8 tons (1800 kg) and is built with heavy-duty steel. The base accepts four removable posts; three post heights and two model variants are available. Units can be assembled and safely stacked up to four high to optimize floor space in warehouses and production facilities.

Details of Portable Stack Rack

• Load capacity: up to 1.8 tons (1800 kg)
• Construction: heavy-duty steel
• Base designed to accept four removable posts
• Post options: three heights available (model codes indicate height: 1500 / 1200 / 900)
• Model variants: RMC (square tube) and RMCT (square tube with platform)
• Stacking: up to 4 units high when assembled

Available models (dimensions and capacity)

• RMCT1500 — Capacity: 1800 kg; Footprint: W 1069 mm × L 1524 mm; Post height: 1500 mm
• RMCT1200 — Capacity: 1800 kg; Footprint: W 1069 mm × L 1524 mm; Post height: 1200 mm
• RMCT900 — Capacity: 1800 kg; Footprint: W 1069 mm × L 1524 mm; Post height: 900 mm
• RMC1500 — Capacity: 1800 kg; Footprint: W 1069 mm × L 1524 mm; Post height: 1500 mm
• RMC1200 — Capacity: 1800 kg; Footprint: W 1069 mm × L 1524 mm; Post height: 1200 mm
• RMC900 — Capacity: 1800 kg; Footprint: W 1069 mm × L 1524 mm; Post height: 900 mm

Technical specifications

• Maximum load: up to 1.8 tons (1800 kg)
• Material: heavy-duty steel frame and posts
• Base: accepts four removable posts for modular assembly
• Post variants: three heights to adapt to storage needs
• Model options: RMC (square-tube) and RMCT (square-tube with platform)
• Stacking capability: up to 4 units high when correctly assembled
• Common footprint: W = 1069 mm; L = 1524 mm
• Available model numbers: RMCT1500, RMCT1200, RMCT900, RMC1500, RMC1200, RMC900
