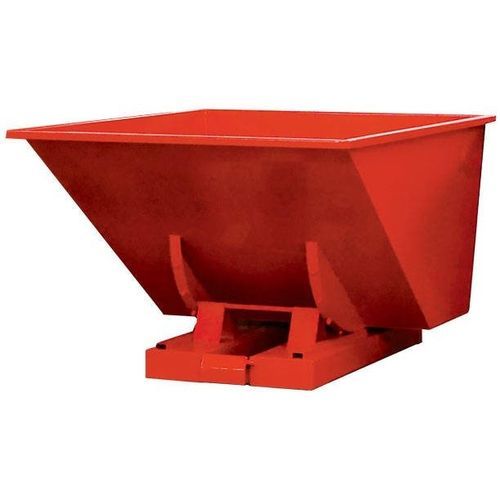

Metal self-dumping hopper SBA series

steelfor wastefor bulk materials

What is the Self-tipping Skip SBA series?
The SBA self-tipping skip is a forklift-mounted container for rapid, safe transport and discharge of waste and materials on construction sites and in industrial facilities. Designed for heavy daily use, the SBA series combines a profiled, reinforced frame with continuously welded sheet-metal components to deliver long service life and stable handling. The automatic tipping mechanism is activated by a front push plate; an optional manual side handle allows controlled tipping without the operator leaving the forklift.

Details of SBA Self-tipping Skip

• Available capacities from 300 to 3000 liters depending on model
• Automatic tipping via a front-mounted push plate
• Optional manual side handle for operator-controlled tipping while remaining on the forklift
• Profiled, reinforced frame for high structural rigidity
• Continuously welded sheet-metal construction for enhanced durability
• Fork sleeve dimensions: 225 x 95 mm; RAL 2002 finish
• Optimised weight distribution for excellent stability during handling
• CE-marked base frame for use with forklifts
• Delivered with safety chain
• Detailed product datasheets available on request

Options

• Nylon, PU or rubber wheels
• Forks locking device
• Elevation frame
• Release chain
• Skid cover

Technical specifications

• Volume capacity range: 300 L to 3000 L
• Fork sleeve dimensions: 225 x 95 mm (RAL 2002)
• Tipping: Automatic (front push plate) and optional manual side-handle
• Construction: Continuously welded sheet-metal components; profiled and reinforced frame for rigidity
• Compliance: CE marked for forklift compatibility
• Supplied with safety chain
• Stability: Designed for optimised weight distribution and high stability during handling
• Models and key dimensions (Model No. | Volume (L) | Length (mm) | Width (mm) | Height (mm) | Admissible load (kg)):
  SBA3000 | 3000 | 2073 | 1866 | 1248 | 2000
  SBA2500 | 2500 | 2073 | 1566 | 1248 | 2000
  SBA2000 | 2000 | 2073 | 1316 | 1248 | 2000
  SBA1600 | 1600 | 2073 | 1066 | 1248 | 2000
  SBA1100 | 1100 | 1700 | 1215 | 1045 | 2000
  SBA900 | 900 | 1525 | 1215 | 870 | 2000
  SBA600 | 600 | 1525 | 865 | 870 | 2000
  SBA300 | 300 | 1235 | 840 | 750 | 1500
