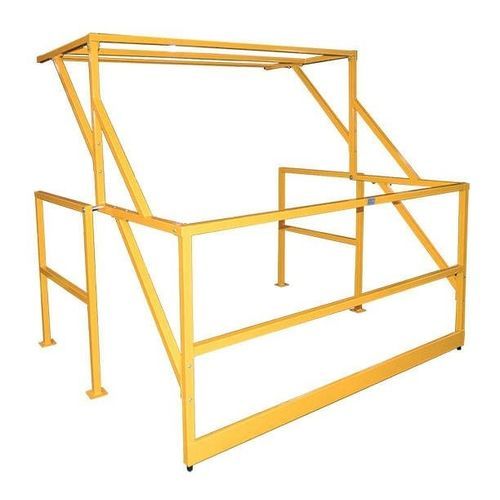

Safety gates system BEB series

Product Overview
Mezzanine pallet safety gate designed to protect personnel during pallet transfer between mezzanine levels and ground level. When the gate is open to allow a forklift to deposit or remove a pallet, it is rotated to prevent pedestrians on the mezzanine from approaching the pallet. Conversely, when open to the mezzanine for loading or unloading, the gate rotates to block the exposed edge and prevent falls.
Available models: BEB1000, BEB2000, BEB2800 (various inside widths).

Details of Mezzanine Pivot Safety Gate

• Manual swing-action gates mounted at each end to allow safe pallet access.
• Gates swing up and down providing a usable area of 58 W x 70 D x 76 H.
• Balanced swing operation for ease of use without springs.
• Constructed from welded steel.
• Safety rails: 42 H handrail, 21 H mid-rail and 4 H kick plate.
• Space-saver detachable compact design for site handling.

Models and Dimensions
BEB2800 | BEB2800 | Inside Width mm(in.) W: 2800 (110) | Overall Depth mm(in.) D: 1915 (73.4) | Overall Height mm(in.) H: 2032 (80) | Assembly: Unassembled | Net Weight kg(lb.): 95.5 (210)
BEB2000 | BEB2000 | Inside Width mm(in.) W: 2000 (78.7) | Overall Depth mm(in.) D: 1915 (73.4) | Overall Height mm(in.) H: 2032 (80) | Assembly: Unassembled | Net Weight kg(lb.): 80 (176)
BEB1000 | BEB1000 | Inside Width mm(in.) W: 1632 (64.3) | Overall Depth mm(in.) D: 1915 (73.4) | Overall Height mm(in.) H: 2032 (80) | Assembly: Unassembled | Net Weight kg(lb.): 75 (165)

Technical specifications

• Series: BEB Series
• Purpose: Mezzanine pallet safety gate for safe transfer of pallets between mezzanine and ground-level
• Construction: Welded steel
• Operation: Manual swing-action gates on each end; balanced for ease of operation without springs
• Usable area (as stated): 58 W x 70 D x 76 H
• Safety features: 42 H handrail, 21 H mid-rail, 4 H kick plate
• Design: Space-saver detachable compact design
• Available models and inside widths: BEB1000 (1632 mm / 64.3 in), BEB2000 (2000 mm / 78.7 in), BEB2800 (2800 mm / 110 in)
• Overall depth (all models): 1915 mm (73.4 in)
• Overall height (all models): 2032 mm (80 in)
• Assembly: Supplied unassembled
• Net weights: BEB1000 = 75 kg (165 lb), BEB2000 = 80 kg (176 lb), BEB2800 = 95.5 kg (210 lb)
