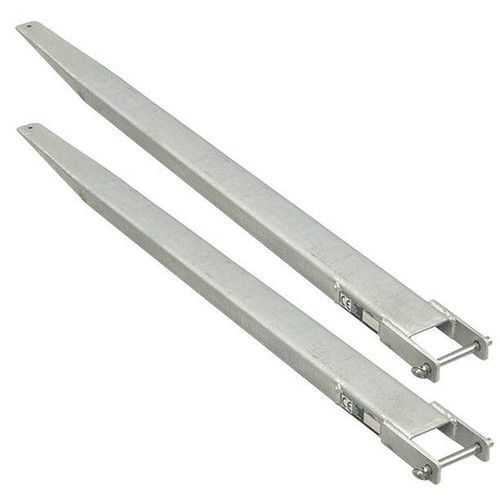

Forklift truck fork extension EXG series

for lifting equipmentfor long, narrow loadssteel

Overview
The EXG closed fork extensions are designed to extend the reach of standard forklift forks safely and efficiently when handling longer or oversized loads. Manufactured from robust steel with a cold galvanized finish, they offer durability and corrosion resistance in demanding working environments. Secured by locking bolts and featuring a fully closed underside, these fork extensions ensure stable load support while complying with ISO 13284 safety standards. Available in multiple lengths and capacities from 1 to 2.5 metric tons, the EXG fork extensions provide a reliable and easy-to-install solution for flexible material handling applications.

Details of EXG Closed forks extensions

• Closed fork extensions with 1 to 2.5 metric ton load capacity
• Robust steel construction
• Fork extensions secured to the forklift truck forks by locking bolts
• Cold galvanized coating
• Easy to set up
• Closed underside
• Fitted with drainage holes
• Permanent marking protected in the extension reinforcement
• Compliant with ISO 13284: at least 60% of the fork extension total length must be supported by the forklift truck fork
• Sold in pairs

Model specifications (table)
i-LIFT NO. | Model No. | Load capacity at 600 mm (kg) | Extensions length (mm) | Interior width extensions (mm) | Interior height extensions (mm) | Fork dimensions (mm)
--- | EXG24/150 | 2500 | 2400 | 160 | 55 | 50×50
--- | EXG22/150 | 2500 | 2200 | 160 | 55 | 50×50
--- | EXG20/150 | 2500 | 2000 | 160 | 55 | 50×50
--- | EXG18/150 | 2500 | 1800 | 160 | 55 | 50×50
--- | EXG24/125 | 1750 | 2400 | 135 | 55 | 45×45
--- | EXG22/125 | 1750 | 2200 | 135 | 55 | 45×45
--- | EXG20/125 | 1750 | 2000 | 135 | 55 | 45×45
--- | EXG18/125 | 1750 | 1800 | 135 | 55 | 45×45
--- | EXG24/100 | 1000 | 2400 | 110 | 45 | 40×40
--- | EXG22/100 | 1000 | 2200 | 110 | 45 | 40×40
--- | EXG20/100 | 1000 | 2000 | 110 | 45 | 40×40
--- | EXG18/100 | 1000 | 1800 | 110 | 45 | 40×40

Technical specifications

• Material: robust steel construction
• Finish: cold galvanized coating for corrosion resistance
• Load capacity range: 1.0 to 2.5 metric tons (models with specific capacities shown in table)
• Design: fully closed underside with drainage holes
• Attachment: secured by locking bolts to forklift forks
• Permanent marking provided and protected within extension reinforcement
• Standards: compliant with ISO 13284 (minimum 60% of extension length must be supported by fork)
• Supply: sold in pairs
• Available lengths and internal dimensions: see Model specifications table above
