Sheet metal lifting clamp LH150

verticalmanualmotorized

Product overview

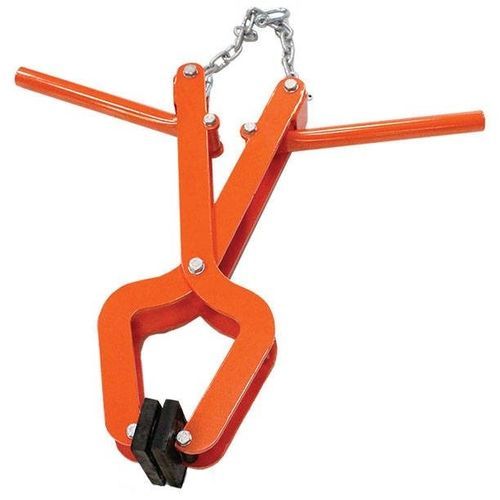

The LH150 scissor lifting grab is a lifting clamp designed for handling flat or irregular loads. It is suspended from an overhead hoist and grips the load from both sides; the scissor action increases gripping force as load weight rises to ensure secure holding. The jaw mechanism allows controlled opening and release during each lifting cycle. The LH150 can be used manually or driven by lifting equipment, for common industrial material-handling tasks.

Features

• Scissor-type gripping action that increases force with load
• Suspended from overhead hoists
• Operable manually or via lifting equipment/forklift
• Fixed jaw design for consistent clamping

Details
Load capacity: 150 kg (330 lb.)
Operation: Manual / Forklift driven
Jaw type: Fixed
Internal open width of jaws: 195 mm
Net weight: 13.2 kg

Technical specifications

• Model: LH150
• Capacity: 150 kg (330 lb.)
• Operation type: Manual / Forklift
• Jaw type: Fixed
• Internal open width of jaws: 195 mm
• Net weight: 13.2 kg
• Design: Scissor lifting grab (scissor-type jaws that increase grip with load)
