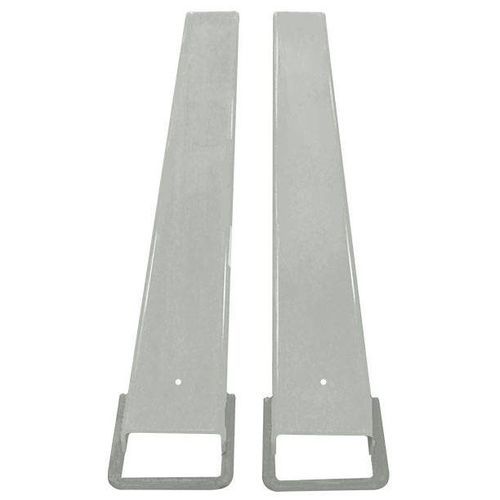

Forklift truck fork extension EXOG series

for long itemsfor long productsfor long, narrow loads

Overview
Slip-on fork extensions provide a practical, cost-effective method to extend forklift fork length for handling long or oversized loads. They slide onto existing forks and are secured by a rear safety restraining strap to prevent movement during operation. Manufactured from robust steel with a cold-galvanized finish, these extensions offer corrosion resistance and comply with ISO 13284 safety requirements. Available in multiple lengths and load capacities from 1.0 to 2.5 metric tons, EXOG slip-on extensions suit a wide range of material-handling applications.

Key features

• Slip-on design for very fast installation
• Load capacity: 1.0 to 2.5 metric tons depending on model
• Extension lengths: 1800, 2000, 2200, 2400 mm
• Cold-galvanized surface for corrosion resistance
• Rear safety restraining strap prevents detachment during use
• Open underside design to reduce weight and allow debris clearance
• Complies with ISO 13284: minimum 60% of the extension length must be supported by the forklift fork
• Supplied in pairs

Models and specifications

• EXOG24/150 | Load at 600 mm: 2500 kg | Length: 2400 mm | Inner width: 160 mm | Inner height: 45 mm | Compatible fork: 50×50 mm
• EXOG22/150 | 2500 kg | 2200 mm | 160 mm | 45 mm | 50×50 mm
• EXOG20/150 | 2500 kg | 2000 mm | 160 mm | 45 mm | 50×50 mm
• EXOG18/150 | 2500 kg | 1800 mm | 160 mm | 45 mm | 50×50 mm
• EXOG24/125 | 1750 kg | 2400 mm | 135 mm | 45 mm | 45×45 mm
• EXOG22/125 | 1750 kg | 2200 mm | 135 mm | 45 mm | 45×45 mm
• EXOG20/125 | 1750 kg | 2000 mm | 135 mm | 45 mm | 45×45 mm
• EXOG18/125 | 1750 kg | 1800 mm | 135 mm | 45 mm | 45×45 mm
• EXOG24/100 | 1000 kg | 2400 mm | 110 mm | 35 mm | 30×40 mm
• EXOG22/100 | 1000 kg | 2200 mm | 110 mm | 35 mm | 30×40 mm
• EXOG20/100 | 1000 kg | 2000 mm | 110 mm | 35 mm | 30×40 mm
• EXOG18/100 | 1000 kg | 1800 mm | 110 mm | 35 mm | 30×40 mm

Technical specifications

• Material: steel construction
• Surface finish: cold-galvanized coating
• Mounting: slip-on type with rear safety restraining strap
• Standards: compliant with ISO 13284 (minimum 60% support by forklift fork)
• Sold in pairs
• Available load capacities: 1.0, 1.75, 2.5 metric tons depending on model
• Available lengths: 1800, 2000, 2200, 2400 mm
• Inner widths: 110, 135 or 160 mm
• Inner heights: 35 or 45 mm
• Compatible fork dimensions examples: 30×40 mm, 45×45 mm, 50×50 mm
