Lifting forklift truck attachment MK series

with hooks

Product overview

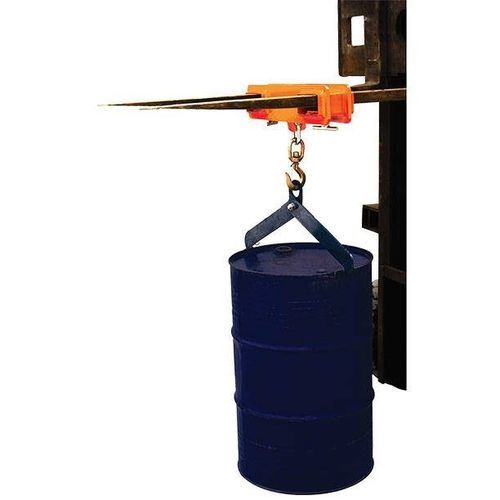

Adjustable forklift hoisting hook supplied with a swivel hook and shackle. Designed to hang loads safely under the fork tines, it increases flexibility for handling different load sizes and reach requirements. The hook can be positioned anywhere along the fork and is clamped from underneath with two large 'T' screws. Supplied with a shackle and 360° swivel hook; delivered fully tested and certified to applicable Health & Safety regulations.

Details

• Conforms to lifting equipment standards
• Compact, functional design for industrial use
• Very fast installation and adjustment
• Good stability when aligned with the fork center of gravity
• Equipped with shackle and 360° swivel sling hook
• Safety chain to secure the device to the forklift
• Includes underside tightening 'T' screws
• Available in three models with different dimensions and load capacities

Models / Technical table
i-LIFT NO. | Model No. | Capacity kg(lb.) | Max. Fork Section mm(in.) | Overall Size mm(in.) | Net Weight kg(lb.) | Max. Fork Width mm(in.)
— | MK50 | 5000 (11000) | 185 × 80 | 180 × 730 × 220 | 45 (99) | 610 (24)
— | MK25 | 2500 (5500) | 145 × 70 | 150 × 660 × 180 | 25 (55) | 610 (24)
— | MK10 | 1000 (2200) | 140 × 50 | 120 × 440 × 160 | 14 (30.8) | 410 (16.1)

Technical specifications

• Model: MK50 — Capacity 5000 kg (11000 lb); Max fork section 185 × 80 mm; Overall size 180 × 730 × 220 mm; Net weight 45 kg (99 lb); Max fork width 610 mm (24 in)
• Model: MK25 — Capacity 2500 kg (5500 lb); Max fork section 145 × 70 mm; Overall size 150 × 660 × 180 mm; Net weight 25 kg (55 lb); Max fork width 610 mm (24 in)
• Model: MK10 — Capacity 1000 kg (2200 lb); Max fork section 140 × 50 mm; Overall size 120 × 440 × 160 mm; Net weight 14 kg (30.8 lb); Max fork width 410 mm (16.1 in)
• Fitted with shackle and 360° swivel sling hook for secure lifting
• Secured by two underside 'T' screws; includes safety chain
• Delivered fully tested and certified to applicable lifting and health & safety standards
