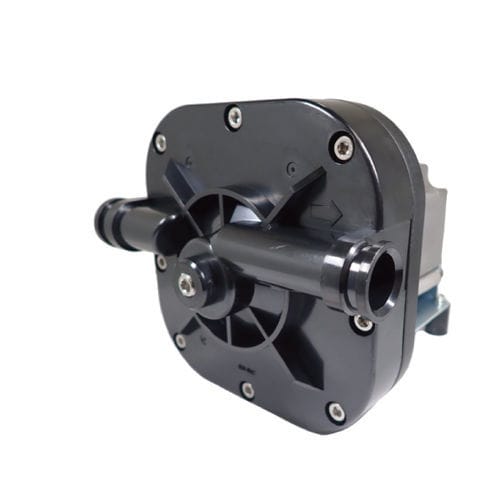

Diaphragm pump FDL-20waterwith DC motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Operation
- with DC motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- suction, lift
- Material
- stainless steel, EPDM, thermoplastic
- Voltage
- 24 V
- Protection level
- standard
- Other characteristics
- compact, built-in, low-vibration, brushless
- Flow
20 l/min
(5.28344 us gal/min)- Pressure
4 bar
(58.015 psi)- Power
125 W
(0.17 hp)- Fluid temperature
Max.: 70 °C
(158 °F)Min.: 0 °C
(32 °F)- Length
231 mm
(9 in)- Width
182 mm
(7.17 in)- Height
140 mm
(5.51 in)- Weight
2.5 kg
(5.51 lb)
Description
"Diaphragm pumps are membrane-type positive displacement pumps that use a membrane made of rubber or fluororesin.
The compact, lightweight design makes them easy to install in other equipment and it is also highly airtighted. Depending on the specifications, its wetted parts that come into contact with the gas (liquid) are made of fluor resin or stainless steel, so it is applicable to apply in environments where corrosion resistance is required."
■DC motor uses a brushless motor, variable speed operation as standard features and alarm output available
■Low-Pulsation/Low-Vibration/Low-Noise
■Self-Priming: 3m (Suction Lift)
■Highly Corrosion-Resistant
■Variable Speed Function (Standard Feature)
■Alarm Detection Function (Standard Feature)
Option
Connection - Quick fasteners 12.7
O-ring - FKM,FFKM,FEP,AFLAS,NEXUS
Motor - AC100/110V,200/220V
Others - Pressure switch, built-in relief valve, anti-vibration stand power cord (AC), harness processing, external volume regulator (DC)
Gas Wetted Materials
Pump head - PPS(Thermoplastics)
Diaphragm - Thermoplastic elastomers
Valve assembly - Thermoplastic elastomers / PPS
O-ring - EPDM(Standard)
