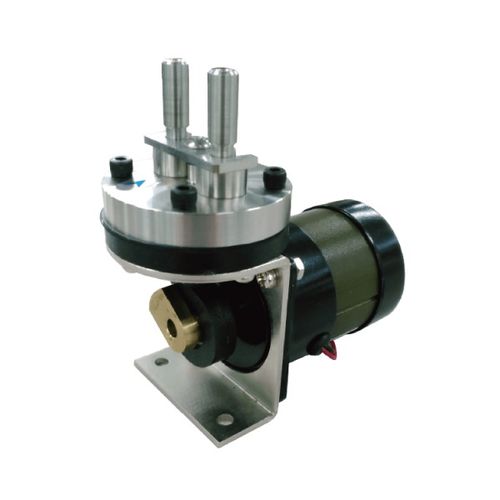

Diaphragm pump FD-2DCwaterelectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Material
- PTFE
- Voltage
- 24 V
- Protection level
- standard
- Other characteristics
- screw-in
- Flow
2 l/min
(0.52834 us gal/min)- Pressure
6.5 bar
(94.275 psi)- Power
3 W
(0 hp)- Fluid temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)- Length
83 mm
(3 in)- Width
60 mm
(2.36 in)- Height
86.5 mm
(3.41 in)- Weight
0.38 kg
(0.84 lb)
Description
■Significantly reduced vibration compared to conventional models（LVM-10/DCP-20）
■Optional screw-in connection added
Option/Gas Wetted Materials
Option
Connection - Φ6mm,Φ4mm,Rc1/8,Barb joint(O.D.Φ4.2mm),Flareless joint
Diaphragm - FKM+PTFE,Silicon(+PTFE),EPDM(+PTFE),CR(+PTFE),PTFE based
Valve - PTFE,EPDM
O-ring - Silicon,EPDM,CR,FFKM,Kalrez
Motor - Variable speed DC24V Motor(FD-2S)
Others - Anti-vibration stand, power supply unit (AC), harness processing, rotating
part safety cover (standard mount only), external volume regulator (FD-2S)
Gas Wetted Materials
Pump head - SUS304
IN/OUT tube - SUS304
Diaphragm - FKM（STD）
Valve - FKM（STD）
O-ring - FKM（STD）
Others - SUS304
