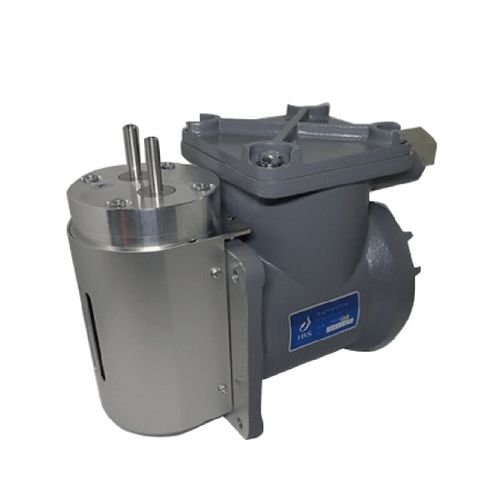

Diaphragm pump FD-5XP
for gasmotor-drivenself-priming

Diaphragm pump - FD-5XP - IBS INC. - for gas / motor-driven / self-priming
Diaphragm pump - FD-5XP - IBS INC. - for gas / motor-driven / self-priming
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Fluid
for gas
Operation
motor-driven
Priming
self-priming
Mobility
stationary
Domain
industrial
Protection level
explosion-proof
Flow

5 l/min
(1.32086 us gal/min)

Pressure

6.5 bar
(94.275 psi)

Power

25 W
(0.03 hp)

Fluid temperature

Max.: 60 °C
(140 °F)

Min.: 0 °C
(32 °F)

Length

237 mm
(9 in)

Width

115 mm
(4.53 in)

Height

168.7 mm
(6.64 in)

Description

■Explosion-proof (d2G4) ■Compact / Lightweight Option Connection - Φ8mm,Rc1/4,Flareless joint Diaphragm - FKM,Silicon(+PTFE),EPDM(+PTFE),CR(+PTFE) Valve - FKM,EPDM O-ring - Silicon,EPDM,CR,FFKM Others - Liquid specification(FD-5XPL), Anti-vibration stand Gas Wetted Materials Pump head - SUS304 IN/OUT tube - SUS304 Diaphragm - FKM+PTFE（Standard） Valve - PTFE（Standard） O-ring - FKM（Standard） Others - SUS304
