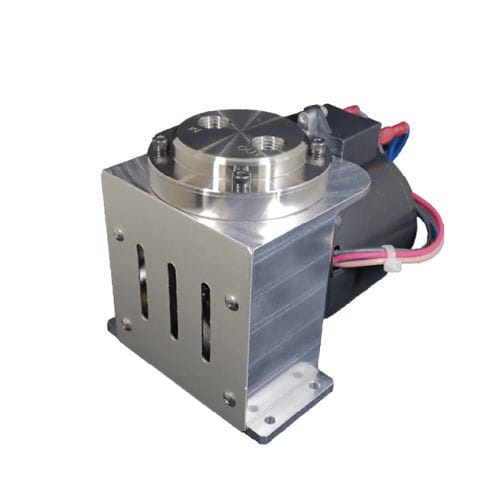

Diaphragm pump FD-15for gasmotor-drivenself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for gas
- Operation
- motor-driven
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Material
- EPDM
- Protection level
- standard
- Flow
15 l/min
(3.96258 us gal/min)- Pressure
20 bar
(290.075 psi)- Power
25 W
(0.03 hp)- Fluid temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)- Length
107 mm
(4 in)- Width
135 mm
(5.31 in)- Height
117.5 mm
(4.63 in)- Weight
2.7 kg
(5.95 lb)
Description
High airtight, best use for boosting and circulating gases
Option/Gas Wetted Materials
Option
Connection - Flareless joint, VCR joint, One-touch joint
Diaphragm - FKM,CR,PTFE coated※,PTFE based※
Valve - EPDM,FKM,CR
O-ring - FKM,CR,FEP,FFKM
Cap,Pump head - A5052
Motor - AC200/220V(FD-15E)
Others - Anti-vibration stand, power supply unit (AC), harness processing, external volume regulator (DC)
Gas Wetted Materials
Cap - SUS304(Standard)
Pump head - SUS304(Standard)
Diaphragm - EPDM(Standard)
Valve - PTFE（Standard）
O-ring - EPDM(Standard)
Others - SUS304
VIDEO
