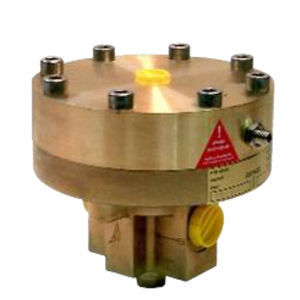

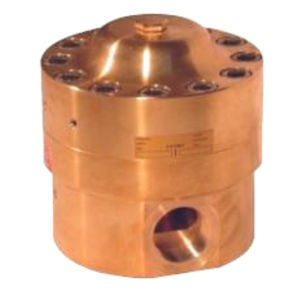

Dome-loaded pressure regulator D261brassindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- dome-loaded
- Material
- brass
- Applications
- industrial
- Pressure
Max.: 420 bar
(6,091.58 psi)Min.: 250 bar
(3,625.94 psi)- Orifice diameter
Max.: 4 mm
(0.157 in)Min.: 1.5 mm
(0.059 in)
Description
The options define the additional particularities in the basic specification.
Do not hesitate to consult us to know the best configuration for your need
Internal leak tight : Min 10-3 mbar.l/s in Helium (valve / seat)
External leak tight : Min 10-4 mbar.l/s in Helium
Air flow by bar absolute of outlet pressure in sonic phase (P. inlet > 2 x P. outlet) and internal diameter Ø 4 mm:
- 3/8" outlet port : 5 Nm3/h
- 1/2" outlet port : 13 Nm3/h
For a flow value in subsonic phase
(P. inlet <= 2 x P. outlet), or other internal diameter,
