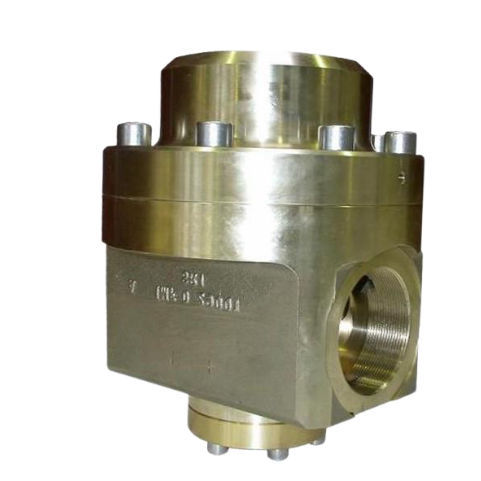

Dome-loaded pressure regulator D290stainless steelaluminumbronze
Add to favorites
Compare this product
Characteristics
- Technology
- dome-loaded
- Material
- stainless steel, aluminum, bronze
- Applications
- industrial
- Pressure
Max.: 100 bar
(1,450.38 psi)Min.: 15 bar
(217.56 psi)
Description
The options define the additional particularities in the basic specification.
Do not hesitate to consult us to know the best configuration for your need.
Internal leak tight : Min 10-3 mbar.l/s in Helium (valve / seat)
External leak tight : Min 10-4 mbar.l/s in Helium
Air flow by bar absolute of outlet pressure in sonic phase (P. inlet > 2 x P. outlet)
and internal diameter Ø 20 mm:
- 3" outlet port (DN80): 500 Nm3/h ***
For a flow value in subsonic phase
(P. inlet <= 2 x P. outlet), or other internal diameter,
Catalogs
No catalogs are available for this product.
See all of IMF‘s catalogsOther IMF products
Dome loaded Pressure regulators
