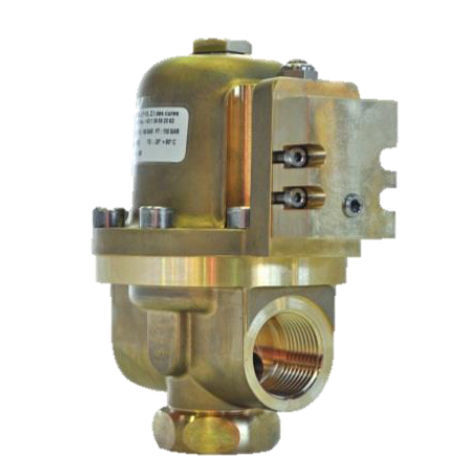

Dome-loaded pressure regulator D166brassstainless steelindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- dome-loaded
- Material
- brass, stainless steel
- Applications
- industrial
- Pressure
Max.: 100 bar
(1,450.38 psi)Min.: 15 bar
(217.56 psi)- Orifice diameter
Max.: 12 mm
(0.472 in)Min.: 9 mm
(0.354 in)
Description
The options define the additional particularities in the basic specification.
Do not hesitate to consult us to know the best configuration for your need.
Internal leak tight : Min 10-3 mbar.l/s in Helium (valve / seat)
External leak tight : Min 10-4 mbar.l/s in Helium
Air flow by bar absolute of outlet pressure in sonic phase (P. inlet > 2 x P. outlet) and internal diameter Ø 9 mm:
- 1" outlet port : 48 Nm3/h
For a flow value in subsonic phase
(P. inlet <= 2 x P. outlet), or other internal diameter,
