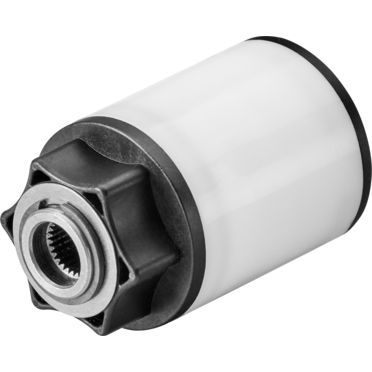

Planetary gear reducer ims.22 eco maxcoaxialsolid-shaft0.5 - 1 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 0.5 - 1 Nm, 0.2 - 0.5 Nm
- Configuration
- modular
- Number of stages
- single-stage, three-stage
- Rotational speed
6,000 rpm
(37,699.1118 rad.min-1)- Backlash
1.5 °, 2 °, 2.5 °
- Weight
33 g, 50 g, 52 g
(1.16 oz, 1.76 oz, 1.83 oz)
Description
Our plastic planetary gear from the Eco Series with outer diameter 22 mm combines efficiency with economy. In the radially screwed or welded MAX version it stands for improved performance with small installation space.
Economy
Modular system, optimized material mix: For economic solutions even in small quantities
Temperature
Also ideally suited for demanding temperature ranges from -15° to +65°C.
Catalogs
IMS.22 Eco MAX
2 Pages
