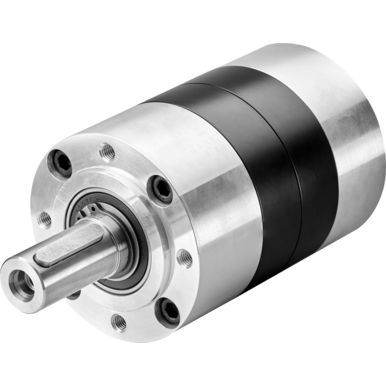

Planetary gear reducer IMS.120 Pro coaxialsolid-shaft100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 100 - 200 Nm, 200 - 500 Nm, 50 - 100 Nm
- Number of stages
- three-stage
- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Backlash
1 rad, 1.5 rad, 2 rad
- Weight
5,600 g, 8,000 g, 10,400 g
(197.53 oz, 282.19 oz, 366.85 oz)
Description
Our planetary gear from the Pro Series with outer diameter 120 mm combines performance with robustness.
Performance
Powerful, long-lived and robust - the planetary gear convinces in a multitude of applications.
Temperature
Also ideally suited for demanding temperature ranges from -30° to +120°C.
Catalogs
IMS.120 Pro
2 Pages
