Planetary gear reducer IMS.33 Eco MAX LN®
coaxialsolid-shaft1 - 5 Nm

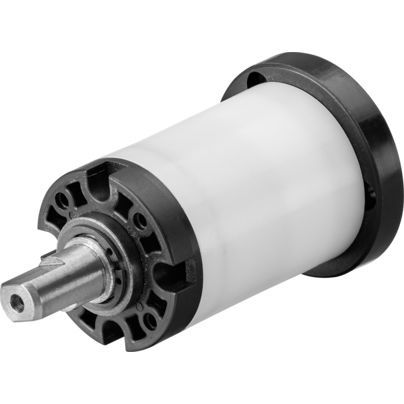

Planetary gear reducer - IMS.33 Eco MAX LN® - IMS Gear - coaxial / solid-shaft / 1 - 5 Nm
Planetary gear reducer - IMS.33 Eco MAX LN® - IMS Gear - coaxial / solid-shaft / 1 - 5 Nm
Planetary gear reducer - IMS.33 Eco MAX LN® - IMS Gear - coaxial / solid-shaft / 1 - 5 Nm - image - 2
Add to favorites
Compare this product
Go to the IMS Gear website for more information

Characteristics

Type
planetary
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Torque
1 - 5 Nm, 0.5 - 1 Nm
Configuration
modular
Number of stages
three-stage
Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Backlash

0.7 rad, 0.8 rad

Weight

150 g, 180 g, 215 g
(5.29 oz, 6.35 oz, 7.58 oz)

Description

Our plastic planetary gear from the Eco Series with outer diameter 33 mm combines efficiency with economy. In the welded MAX version it stands for improved performance with less installation space; furthermore, it meets the increased demands on low noise performance. Low Noise (LN) Due to the use of helical gearing in the first stage particularly low noise. Economy Modular system, optimized material mix: For economic solutions even in small quantities Temperature Also ideally suited for demanding temperature ranges from -15° to +65°C.
