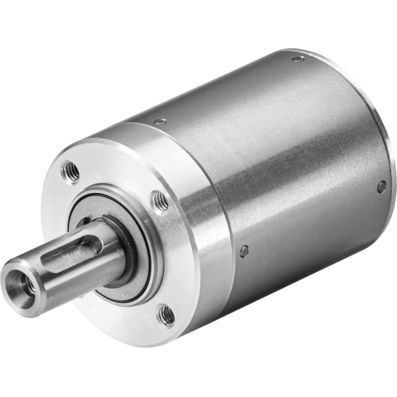

Planetary gear reducer IMS.28 Pro MAX coaxialsolid-shaft1 - 5 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 1 - 5 Nm, 0.5 - 1 Nm
- Number of stages
- three-stage
- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Backlash
1.5 rad, 1.6 rad
- Weight
160 g, 210 g, 260 g
(5.64 oz, 7.41 oz, 9.17 oz)
Description
Our planetary gear from the Pro Series with outer diameter 28 mm combines performance with robustness. In the radially pinned MAX version it stands for improved performance with less installation space. Due to easy adaptations of the configuration it is also available in Low Noise (LN) design.
Temperature
Also ideally suited for demanding temperature ranges from -30° to +120°C.
