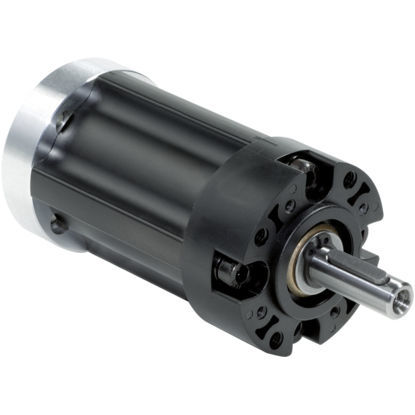

Planetary gear reducer IMS.42 Eco coaxialsolid-shaft1 - 5 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 1 - 5 Nm, 0.5 - 1 Nm
- Configuration
- modular
- Number of stages
- three-stage
- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Backlash
1.7 rad, 1.8 rad
- Weight
150 g, 180 g, 215 g
(5.29 oz, 6.35 oz, 7.58 oz)
Description
Our plastic planetary gear from the Eco Series with outer diameter 42 mm combines efficiency with economy.
Economy
Modular system, optimized material mix: For economic solutions even in small quantities
Temperature
Also ideally suited for demanding temperature ranges from -15° to +65°C.
Catalogs
IMS.42 Eco
2 Pages
IMS.42 Eco MAX LN
2 Pages
