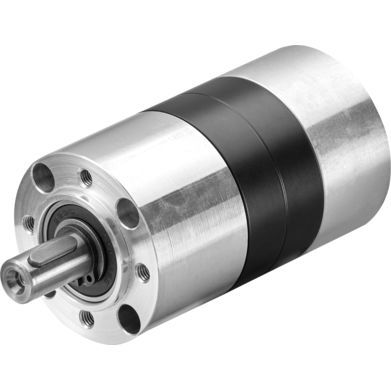

Planetary gear reducer IMS.52 Pro coaxialsolid-shaft20 - 50 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 20 - 50 Nm, 10 - 20 Nm, 1 - 5 Nm
- Number of stages
- three-stage
- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Backlash
0.7 rad, 0.8 rad
- Weight
700 g, 900 g, 1,100 g
(24.69 oz, 31.75 oz, 38.8 oz)
Description
Our planetary gear from the Pro Series with outer diameter 52 mm combines performance with robustness. Due to easy adaptations of the configuration all Pro gears are also available in Low Noise (LN) design.
Performance
Powerful, long-lived and robust - the planetary gear convinces in a multitude of applications.
Temperature
Also ideally suited for demanding temperature ranges from -30° to +120°C.
Catalogs
IMS.52 Pro & IMS.52 Pro LN
2 Pages
