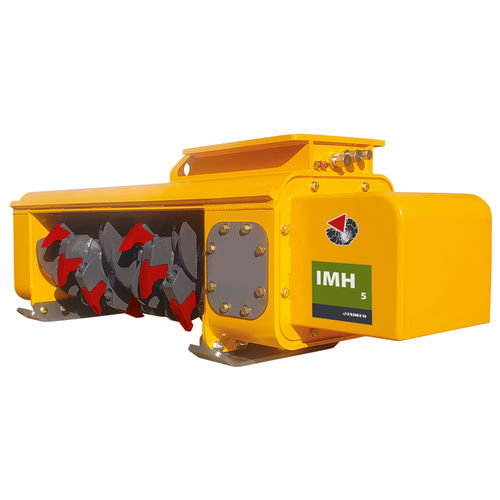

Mulcher IMH 5

Product category
MULCHING HEADS

Product name
IMH 5 — For compact excavators

Overview
Hydraulic mulching head designed for compact excavators in the 5–8 t class. Features a 765 mm cutting width, a 16‑tooth drum and direct transmission. Suitable for vegetation management, roadside maintenance and light mulching operations on small-to-medium carriers. Compatible with HP 900 mounting bracket. Operating weight refers to the attachment with the mounting bracket compliant with Indeco construction standards; variations may occur with alternative brackets.

Type of carrier

• Compact excavator
• Backhoe loader
• Wheeled excavator

Technical specifications

• Cutting width: 765 mm
• GMP (flow) range: 65 ÷ 95 l/min
• Optimal oil supply: 75 l/min
• Number of teeth: 16
• Drum diameter: 205 mm
• Motor (Fixed FD / Variable VD): Gear motor FD
• Transmission: Direct
• Working pressure: 170 ÷ 240 bar
• Attachment operating weight*: 535 Kg
• Mounting bracket compatibility: HP 900
• Recommended excavator weight: 5 ÷ 8 ton

Notes
* Attachment operating weight includes mounting bracket compliant with Indeco construction standards; actual weight may vary with different bracket configurations.
* Illustrations and numerical data are indicative and subject to change for product improvement.
