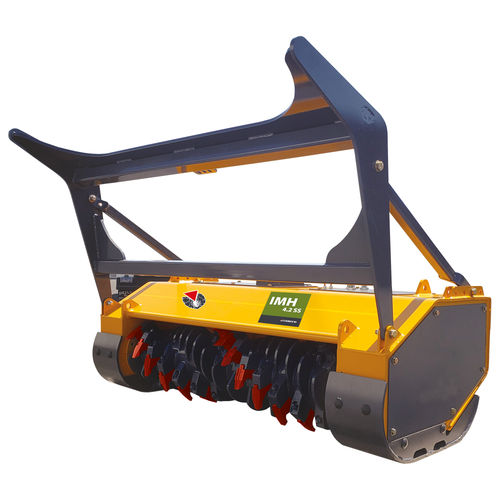

Mulcher IMH 4.2 SS

Product family MULCHING HEADS

Product name IMH 4.2 SS

Application For skid steers / miniloader

TECHNICAL SPECIFICATIONS
Cutting width: 1450 mm
GMP range: 105 ÷ 150 l/min
Optimal oil supply: 150 l/min
Number of teeth: 30
Drum diameter: 205 mm
Motor (Fixed FD / variable VD displacement): Piston VD
Transmission: Belt
Working pressure: 240 ÷ 345 bar
Attachment operating weight*: 1400 Kg
Carrier weight: 4.2 ÷ 6 ton
Type of carrier: Miniloader

Notes
* The attachment operating weight includes the mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are indicative and subject to change at our discretion and without notice. We reserve the right to modify them to improve and develop the product.

Technical characteristics

• Cutting width: 1450 mm
• GMP range: 105 ÷ 150 l/min
• Optimal oil supply: 150 l/min
• Number of teeth: 30
• Drum diameter: 205 mm
• Motor: Piston VD (FD/VD specification)
• Transmission: Belt
• Working pressure: 240 ÷ 345 bar
• Attachment operating weight*: 1400 Kg
• Recommended carrier weight: 4.2 ÷ 6 ton
• Compatible carrier type: Miniloader (skid steer)
