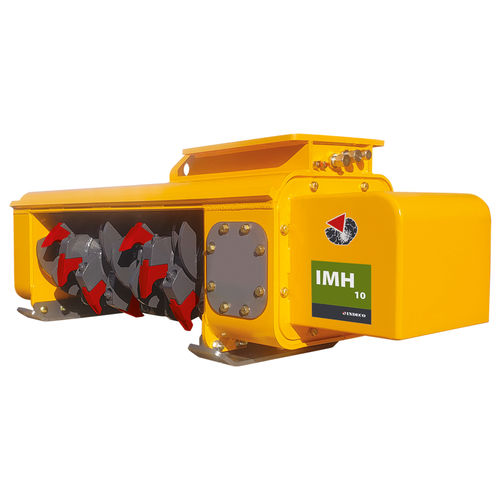

Mulcher IMH 10

Category
Mulching head for compact excavators, intended for vegetation management and mulching operations in construction and land maintenance.

Product name
IMH 10

Product typology
Compact excavator-mounted mulching head designed for medium-duty land-clearing and roadside maintenance.

Technical specifications (summary)

• Cutting width: 915 mm
• GMP range: 90 ÷ 120 l/min
• Optimal oil supply: 105 l/min
• Number of teeth: 20
• Drum diameter: 205 mm
• Motor (FD/VD): Piston FD
• Transmission: Direct
• Working pressure: 240 ÷ 345 bar
• Attachment operating weight*: 735 Kg
• Mounting bracket compatibility: HP 900
• Recommended carrier weight: 9 ÷ 16 ton

Compatibility / recommended carriers

• Compact excavator
• Backhoe loader
• Wheeled excavator

Notes
*The attachment operating weight includes the mounting bracket compatible with Indeco construction standards. Variations in weight may occur due to different mounting bracket configurations. All illustrations and numerical data are indicative and subject to change without notice for product improvement.

Characteristics / technical specifications

• Cutting width: 915 mm
• GMP range: 90 ÷ 120 l/min
• Optimal oil supply: 105 l/min
• Number of teeth: 20
• Drum diameter: 205 mm
• Motor specifications (FD/VD): Piston FD
• Transmission: Direct
• Working pressure: 240 ÷ 345 bar
• Attachment operating weight*: 735 Kg
• Mounting bracket compatibility: HP 900
• Recommended carrier weight: 9 ÷ 16 ton
