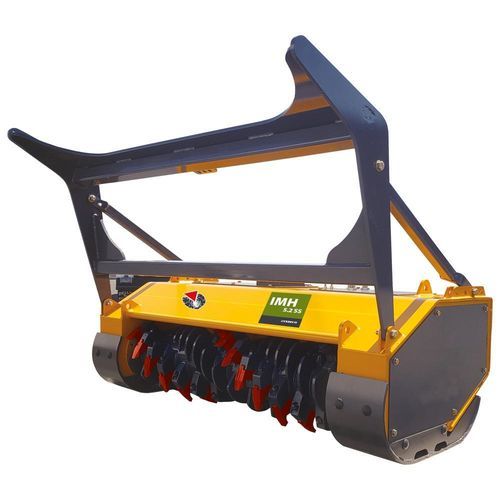

Mulcher IMH 5.2 SS

Product type
Mulching head

Model
IMH 5.2 SS

Application
For skid steers / miniloaders

Technical specifications (table)
Cutting width: 1830 mm
Hydraulic flow range: 110 ÷ 185 l/min
Optimal oil supply: 150 l/min
Number of teeth: 24
Drum diameter: 205 mm
Motor (fixed FD / variable VD displacement): Piston VD
Transmission: Belt
Working pressure: 240 ÷ 345 bar
Attachment operating weight*: 1415 Kg
Recommended carrier weight: 4.2 ÷ 6 ton
Type of carrier: Miniloader

Notes
* The attachment operating weight includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Features / Technical specifications

• Cutting width: 1830 mm
• Hydraulic flow range: 110 ÷ 185 l/min
• Optimal oil supply: 150 l/min
• Number of teeth: 24
• Drum diameter: 205 mm
• Motor: Piston VD (Fixed FD / variable VD displacement)
• Transmission: Belt
• Working pressure: 240 ÷ 345 bar
• Attachment operating weight*: 1415 Kg
• Recommended carrier weight: 4.2 ÷ 6 ton
• Type of carrier: Miniloader
