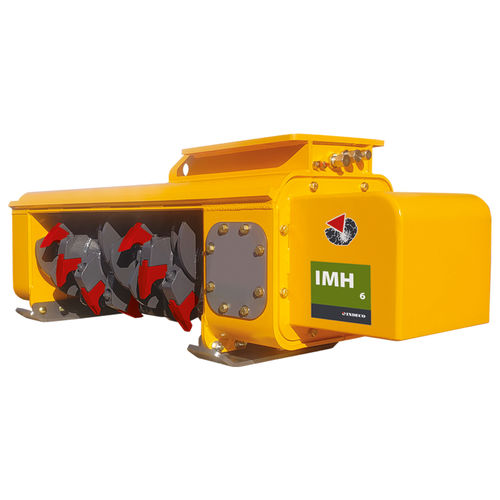

Mulcher IMH 6

Mulcher - IMH 6 - INDECO
Mulcher - IMH 6 - INDECO
Mulcher - IMH 6 - INDECO - image - 2
Add to favorites
Compare this product
Go to the INDECO website for more information

Characteristics

Working width

765 mm
(30.12 in)

Description

Product overview
  • Category: Mulching heads
  • Model: IMH 6
  • Application: For compact excavators (6 ÷ 9 t)


Technical specifications (excerpt)
  • Cutting width: 765 mm
  • Flow range: 90 ÷ 110 l/min
  • Optimal oil supply: 95 l/min
  • Number of teeth: 16
  • Drum diameter: 205 mm
  • Motor (FD fixed / VD variable): Gear FD
  • Transmission: Direct
  • Working pressure: 170 ÷ 240 bar
  • Attachment operating weight*: 545 Kg
  • Mounting bracket compatibility: HP 900


Compatible carriers
  • Compact excavator
  • Backhoe loader
  • Wheeled excavator


Notes
  • *The attachment operating weight includes the mounting bracket compatible with Indeco construction standards; differences in weight may result from different bracket configurations.
  • All illustrations and numerical data are indicative and subject to change without prior notice. We reserve the right to modify specifications to improve and continuously develop the product.


Characteristics / technical specifications
  • Cutting width: 765 mm
  • Flow range: 90 ÷ 110 l/min
  • Optimal oil supply: 95 l/min
  • Number of teeth: 16
  • Drum diameter: 205 mm
  • Motor (FD / VD): Gear FD
  • Transmission: Direct
  • Working pressure: 170 ÷ 240 bar
  • Attachment operating weight*: 545 Kg
  • Mounting bracket compatibility: HP 900
  • Recommended excavator weight: 6 ÷ 9 t
  • Compatible carriers: Compact excavator; Backhoe loader; Wheeled excavator

Catalogs

No catalogs are available for this product.

See all of INDECO‘s catalogs
Go to the INDECO website for more information

Other INDECO products

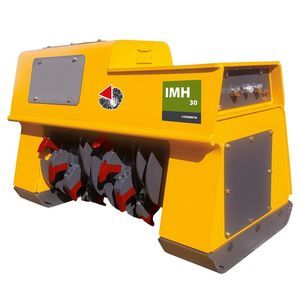

Mulching Heads
