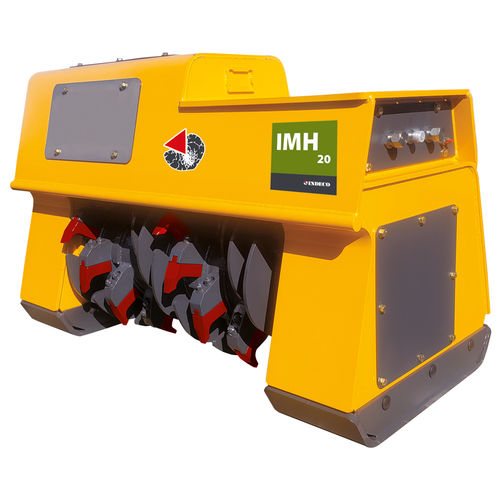

Mulcher IMH 20
Add to favorites
Compare this product
Characteristics
- Working width
1,065 mm
(41.93 in)
Description
Product family
Mulching heads
Model
IMH 20
Application
For excavators
Technical specifications
Notes
* The attachment operating weight includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are indicative and subject to change without notice. We reserve the right to modify them for product improvement and development.
Mulching heads
Model
IMH 20
Application
For excavators
- Recommended excavator weight: 20 ÷ 36 ton
- Carrier types: Wheeled excavator; Tracked excavator
- Mounting bracket compatibility: HP 2500
Technical specifications
- Cutting width: 1065 mm
- GMP range: 170 ÷ 245 l/min
- Optimal oil supply: 210 l/min
- Number of teeth: 22
- Drum diameter: 305 mm
- Motor (Fixed FD / variable VD): Piston VD
- Transmission: Belt
- Working pressure: 240 ÷ 345 bar
- Attachment operating weight*: 1500 Kg
- Mounting bracket compatibility: HP 2500
- Excavator weight range: 20 ÷ 36 ton
Notes
* The attachment operating weight includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are indicative and subject to change without notice. We reserve the right to modify them for product improvement and development.
