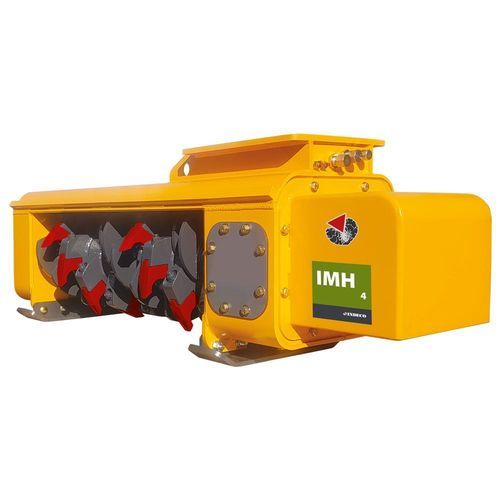

Verge mower mulcher IMH 4

Product
Mulching head designed for compact excavators for vegetation control, mulching and light land clearing.

Model
IMH 4

Application
For compact excavators (recommended 4 ÷ 6 ton). Suitable for roadside vegetation management, ditches and small-scale clearing operations.

Technical specifications

• Cutting width: 610 mm
• GMP range: 65 ÷ 95 l/min
• Optimal oil supply: 75 l/min
• Number of teeth: 12
• Drum diameter: 205 mm
• Motor (Fixed FD / Variable VD): Gears FD
• Transmission: Direct
• Working pressure: 170 ÷ 240 bar
• Attachment operating weight*: 385 Kg
• Mounting bracket compatibility: HP 400
• Recommended excavator weight: 4 ÷ 6 ton

Compatible carriers

• Compact excavator
• Backhoe loader
• Wheeled excavator

Notes
*The attachment operating weight includes the mounting bracket compatible with Indeco construction standards. Actual weight can vary depending on bracket configuration.
N.B. All illustrations and numerical data are indicative and subject to change without notice; we reserve the right to modify them for product improvement.

Characteristics / Technical specifications

• Cutting width: 610 mm
• GMP range: 65 ÷ 95 l/min (optimal 75 l/min)
• Number of teeth: 12
• Drum diameter: 205 mm
• Motor: Gears FD (Fixed FD / Variable VD)
• Transmission: Direct
• Working pressure: 170 ÷ 240 bar
• Attachment operating weight*: 385 Kg (includes HP 400 mounting bracket)
• Recommended carrier weight: 4 ÷ 6 ton
• Compatible carriers: Compact excavator; Backhoe loader; Wheeled excavator
