Forestry mulcher IMH 14

verge mower

Product

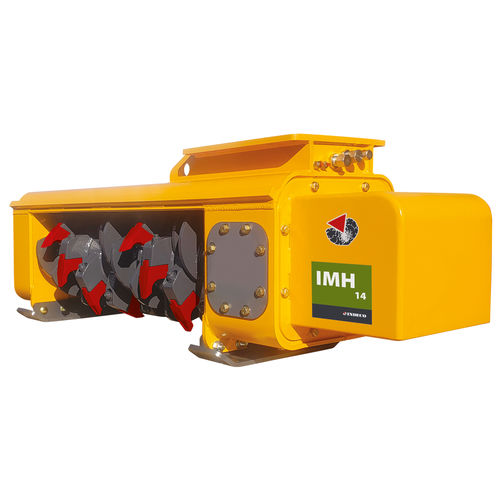

IMH 14 mulching head for compact excavators, designed for vegetation management and land clearing applications.

Overview
The IMH 14 is a hydraulic mulching head engineered for installation on compact excavators and backhoe loaders. It delivers a 1120 mm cutting width and is suitable for forestry edge maintenance, roadside vegetation control and light land clearing.

Technical specifications

• Cutting width: 1120 mm
• Hydraulic flow range: 110 ÷ 150 l/min
• Optimal oil supply: 135 l/min
• Number of teeth: 22
• Drum diameter: 205 mm
• Motor: Piston VD (Fixed FD / Variable VD displacement)
• Transmission: Direct
• Working pressure: 240 ÷ 345 bar
• Attachment operating weight*: 1050 Kg
• Mounting bracket compatibility: HP 1200
• Recommended carrier weight: 14 ÷ 18 ton

Compatible carriers

• Compact excavator
• Backhoe loader
• Wheeled excavator

Notes
* The attachment operating weight includes the mounting bracket compatible with Indeco construction standards. Differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are indicative and may be changed without notice. We reserve the right to modify them to improve and develop the product continuously.

Features / technical highlights

• 1120 mm cutting width suitable for mid-range compact carriers
• Hydraulic flow 110–150 l/min (optimal 135 l/min)
• 22 replaceable teeth on 205 mm drum
• Piston VD motor for reliable torque (FD/VD configuration)
• Direct transmission for efficient power transfer
• Working pressure 240–345 bar
• Mounting bracket: HP 1200 compatibility
