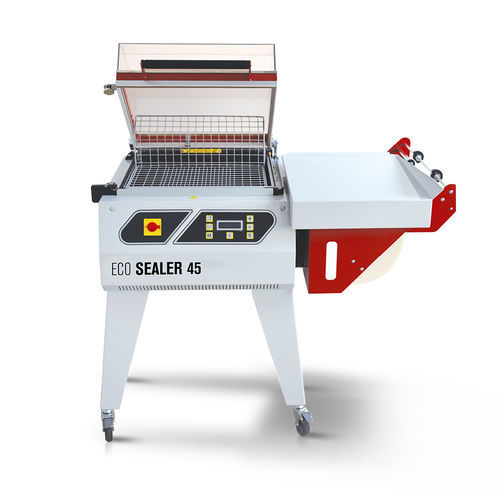

Semi-automatic shrink wrapping machine Eco Sealer 45

for heat packingpackaging machinefor heat-shrink film packages

Product overview
The bell heat-shrink packaging machine Eco Sealer 45 is a low-energy, bell-type shrink wrapper designed for small and medium production environments such as artisan workshops and retail. Compact and easy to operate, it integrates electronic control via an alphanumeric LCD panel with storable work programs.

5 great reasons to choose this product

• Technical support for purchase
• Good value for money
• 12-month warranty on spare parts
• Fast turnaround for storage and delivery
• Manufacturer experience: over 35 years on the market

Method of use
The operator places the product on shrink film on the work surface and moves it into the sealing area inside the bell. After lowering the bell, sealing and shrinking start automatically; once complete the bell opens to remove the packaged product and continue production.

Optional

• Machine holder support
• Stainless steel packaging plate

Features

• Sealing and heat-shrinking in a single operation
• PTFE-treated sealing blade
• Adjustable height for internal packing plate
• Mobile product holder plate independent from film reel support for better film adaptation
• Bell hold electromagnet with automatic release
• Air cooling of chamber body
• Alphanumeric LCD control panel
• Durable, easy-to-maintain solid-state relays
• Reduced energy consumption
• CE regulatory compliance

LCD control panel features
The alphanumeric LCD control panel stores up to 6 work programs and is based on a 16-bit microprocessor board. Parameters and monitoring include welding temperature, shrink time, shrink chamber temperature, retraction delay, bell opening delay, machine status and an electronic package counter; diagnostics for faults are available.

Additional product information (table)
Machine size without trolley: L 1050 x W 665 x H 465 mm
Machine size with trolley: L 1050 x W 665 x H 1029 mm
Net weight: 75 Kg
Supply voltage: 220 V single phase
Power frequency: 50/60 Hz
Installed power: 1.6 kW
Welding bar size: 440 x 300 mm
Maximum product height: 210 mm
Maximum production: Up to 300 pph
Maximum reel dimensions: H 450 x ø 250 mm
Usable films: PVC, Polyolefin
Film thickness supported: Up to 30 µm

Characteristics / technical specifications

• Machine type: bell-type shrink wrapper
• Application: small and medium production, craft workshops, retail
• Operation: manual loading, automatic seal and shrink cycle with automatic bell release
• Control: alphanumeric LCD with 6 storable programs
• Safety & maintenance: CE compliance, air-cooled casing, solid-state relays
• Optional: machine holder, stainless steel packaging plate
