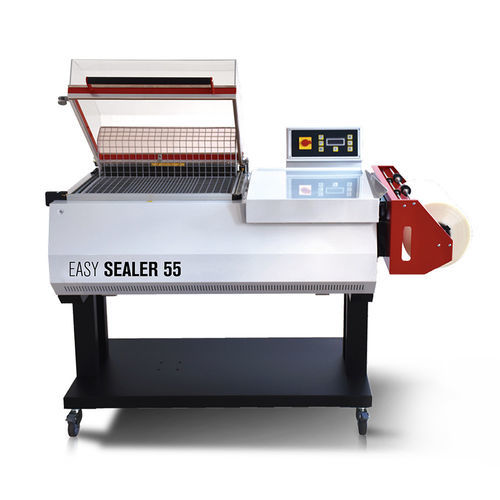

Semi-automatic shrink wrapping machine Easy Sealer 55

for heat packingfor filmfor plastic film

Product overview
The Easy Sealer 55 is a bell-type heat-shrink packaging machine designed for industrial packaging lines that require reliable, repeatable shrink-sealing in a single operation. Built on a high-strength steel frame, it combines a front control interface and modern electronics to manage welding and shrink cycles. The enlarged support surface accommodates larger items while programmable cycles enable quick changeovers between product types.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Dedicated pre-sales technical support
• Competitive total cost of ownership
• 12-month warranty on spare parts
• Fast setup and cycle recall
• Manufacturer experience: over 35 years on the market

Method of use
The operator places the product inside the film on the work surface and slides it to the sealing area at the bell perimeter. Lowering the bell starts welding and heat-shrinking simultaneously. At the end of the cycle the bell opens automatically for product removal and preparation of the next package.

Optional features

• Dual coil film support
• Waste recovery device
• Stainless-steel packaging plate

Features

• Combined welding and heat-shrink operation
• PTFE-treated sealing blade
• Height-adjustable internal packing plate
• Mobile product support plate independent from the film reel holder for better film adaptation
• Electromagnetic bell retention and automatic release
• Air cooling for the chamber body
• Alphanumeric LCD control panel
• Durable, easy-to-maintain solid-state relays
• Reduced energy consumption
• CE regulatory compliance

LCD control panel features
Alphanumeric LCD panel with storable work programs and a 16-bit microprocessor board for accurate control and monitoring. Visible and adjustable parameters include machine status, electronic package counter and setpoints for welding temperature, shrink time, chamber temperature, retraction delay and bell opening delay. Fault reporting is provided.

Technical specifications

• Machine size: L 1420 x W 790 x H 1115 mm
• Net weight: 121 kg
• Supply voltage: 220 V single-phase
• Power frequency: 50 / 60 Hz
• Installed power: 3.7 kW
• Sealing bar size: 560 x 430 mm
• Maximum product height: 260 mm
• Maximum production: up to 300 pph
• Maximum reel dimensions: 600 mm width – ø 300 mm
• Usable films: PVC, polyolefin
• Film thickness: up to 30 μm
