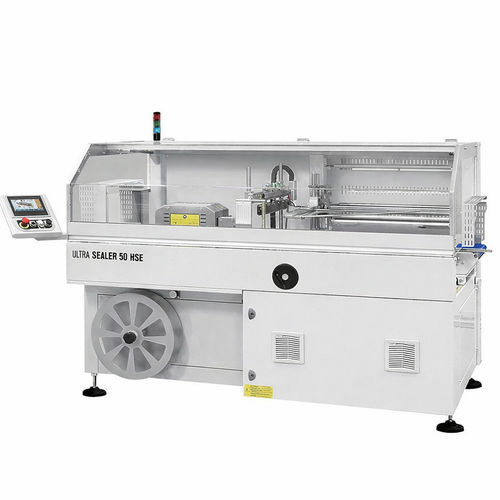

Automatic packaging machine Ultra Sealer 50 HSE

PLC-controlledwith shrink tunnelcontinuous-motion

Overview
The Ultra Sealer 50 HSE is an automatic L-sealer engineered for continuous-intermittent sealing and modular integration. Models are available with or without a shrink tunnel. The design enables packaging of products with effectively unlimited length while reducing film waste and increasing throughput.

Key benefits

• Compatible with polyolefin and polyethylene films
• Production capacity up to 4200 packs/hour
• Dual temperature control for long and short sealing bars
• Programmable PLC control with 4.3" LCD and optional 7" panel PC interface
• Waste recovery system and optimized energy consumption

Usage
Motorized infeed belts transport products wrapped in single-fold film. Photocells detect product presence and trigger the automatic cycle: feeding, film unwinding, transverse sealing and unloading. The machine supports single-item and grouped-pack workflows depending on program settings.

Optional

• Printed-film centering device
• Product-saving photocell
• Welding bar for polyethylene (15–80 µm)
• Cold film perforation device
• Extended input belt (+500 mm)
• Protected outfeed roller conveyor, 46 mm pitch, 1000 mm length

Features

• Full-electric continuous packaging machine, Industry 4.0 ready
• Intermittent duty cycle with inverter and encoder control
• Crossbar with PTFE-treated welding blade; hot-blade friction side sealing
• FLXMOD control system with digital and analog I/O modules
• Inverter-driven motors for each drive and motorized belt approach
• Thermocouple monitoring, emergency stop and CE compliance

Operations control

• Adjustable crossbar height and welding time
• Dual temperature adjustment for longitudinal and transverse welders
• Electronically adjustable conveyor speed
• Motorized welding centering and film tension control
• Storage for up to 50 programs and process statistics

Product information
Machine size: L 2180 x W 1545 x H 1505/1665 mm
Net weight: 715 kg
Supply: 380 V 3-phase, 50/60 Hz
Installed power: 2.3 kW
Welding bar length: 500 mm
Max product height: 200 mm
Max production: 4200 packs/hour
Max reel size: 600 mm – ø 350 mm
Usable films: Polyolefins and Polyethylene
Film thickness: up to 30 µm

Technical specifications

• Machine dimensions: L 2180 x W 1545 x H 1505/1665 mm
• Net weight: 715 kg
• Supply voltage: 380 V, 3-phase
• Frequency: 50/60 Hz
• Installed power: 2.3 kW
• Welding bar size: 500 mm
• Max product height: 200 mm
• Max production: 4200 packs/hour
• Max reel dimensions: 600 mm – ø 350 mm
• Compatible films: Polyolefins, Polyethylene
• Film thickness: up to 30 µm
